EnGenius EAP350
High-Powered, Long-Range Ceiling Mount, Wireless N300 Indoor Access Point​

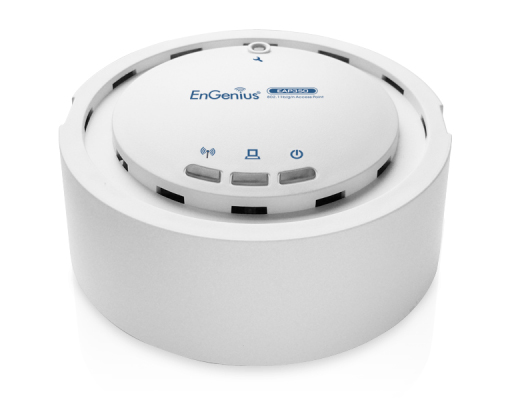

EnGenius EAP350 Product Image

EnGenius Indoor Access Points / Bridges
EnGenius EAP350
EnGenius EAP350 High Power 29dBm Gigabit Wired Wireless-N Access Point/WDS
With Embedded Antenna, Smoke Detector Design, PoE Capable, 300Mbps, Multiple SSIDs Capable
#EAP350
Our Price: $89.00
EnGenius Wi-Fi Bundle Kits
N-EAP350 Kit, (1) EPE5818Gaf and (1) EAP350
Includes EPE5818Gaf PoE injector + EAP350 High Power 29dBm Gigabit Wired Wireless-N Access Point/WDS with Embedded Antenna, Smoke Detector Design, PoE Capable, 300Mbps
#N-EAP350 Kit
Our Price: $129.00

More pricing below, click here!

Overview:

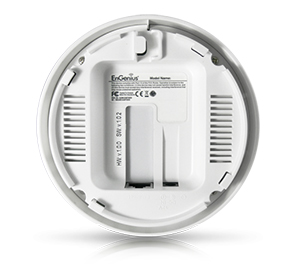

EnGenius EAP350 Back View

The EnGenius EAP350 is a 2.4GHz Wireless-N Indoor Access Point that features 800mW transmit power for long range coverage, wireless speeds up to 300Mbps and a Gigabit port for connecting to a switch or router. It’s an ideal solution for expanding an existing network and increasing bandwidth to support additional users.

This high-powered Access Point/WDS/Repeater is designed for extending networks within large or multi-story buildings or expansive, client-intensive facilities like hotels, resorts, hospitals, office buildings, universities or other multi-building campus facilities that need to offer employees, guests, staff or students access to network resources like printers, content or the Internet.

The EAP350 is designed to appear as a smoke detector and thus unobtrusively blend in with other common building infrastructure appliances. The Access Point’s transmit power of 800mW (up to 29dBm) delivers longer range than ordinary access points in its class. The EAP350 can be configured to operate in several different modes – as a Wireless-N Access Point, a WDS Access Point, or Repeater. It operates in the 2.4GHz frequency spectrum supporting the 802.11b/g/n standards.

The EAP350’s robust transmit power, enhanced receive sensitivity and its MIMO (Multiple In/Multiple Out) antenna array extends wireless coverage and enhances connectivity to client devices even in areas where connections have been previously challenging or non-existent. This capability also helps to reduce the number of Access Points needed to deploy over large properties and helps to eliminate the need for roaming clients to constantly re-associate to different APs in the building or throughout the property.

The EAP’s Gigabit Ethernet (10/100/1000) port offers greater bandwidth capacity and faster data transfers and is ideal for accommodating users on the network who are engaged in HD video streaming or online gaming. For deployments on ceilings or in crawlspaces where power outlets may be scarce, the EAP350 is also PoE (Power-over-Ethernet) capable when used with a PoE injector, like the 802.3af compliant EnGenius EPE5818Gaf.

The EAP350 also features industry standard wireless network encryption settings, like WEP, and WPA/WPA2, to protect the network from unauthorized access. For small-to-medium-sized office or larger corporate deployments the EAP350 also can be configured with MAC address filtering so only known and MAC address recognized client devices can access the network and unauthorized client devices can be isolated

Product Features:

High-power, Long-range Wireless-N
Up to 29dBm RF Tx power provides greater signal coverage compared to other competitive offerings

Wireless-N up to 6x Speed over Legacy 11G Networks
The 11n standard and MIMO deliver up to 300Mpbs throughput over wireless for greater overall connectivity

Gigabit Ethernet LAN Interface
Up to 10x faster data transfer than Fast Ethernet. Ideal for bandwidth-intensive applications like online gaming, VoIP, video and other multimedia streaming

SSID to VLAN Mapping
Supports 802.1q mapping of SSIDs and up to four VLANs

802.3af PoE Compliant
Supports Power-over-Ethernet (IEEE 802.3af) and enables deployment in ceilings and other areas where power outlets may not be available

Integrated Antenna
Internal 5dBi antenna with optimized configuration and RF performance

Specifications:


EnGenius EAP350 Specifications
Standards IEEE802.11b/g/n on 2.4 GHz
IEEE802.3at/af
Memory Capacity Memory: 32 MB
Flash Memory 8 MB
Antenna Internal Omni-Directional Antennas
5 dBi on 2.4 GHz
Physical Interface 1 x 10/100/1000 Gigabit Ethernet Port
1 x Reset Button
1 x Power Connector
Physical Security Kensington Security Slot
LED Indicator 1 x Power
1 x WLAN (Wireless Connection)
2.4 GHz
1 x LAN
Power Source External Power Adapter
DC IN, 12V/2A
IEEE 802.3at Compliant Source
Mounting Ceiling Mount
Wall Mount
Wireless & Radio Specifications
Operating Frequency 2.4GHz
Operation Modes Access Point
Frequency Radio 2.4GHz: 2400MHz ~ 2835MHz
Transmit Power Up to 29 dBm on 2.4 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams 2x2:2
Supported Data Rates (Mbps) 2.4 GHz: Max 300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
Supported Radio Technology 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization 802.11n with 20/40 MHZ channel width
802.11a/b/g with 20 MHZ channel width
Supported Modulation 802.11b: BPSK, QPSK, CCK
802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Management
Multiple BSSID Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-through
QoS WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Management Features Deployment Options
Standalone (Individually Managed)
Configuration Web Interface (HTTP)
CLI (Telnet)
Control Features Auto Reboot
Firmware Upgrade: Web interface or CLI (FTP/HTTP)
Email Alert
Syslog Notification
Backup / Restore Settings
Security WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
L2 Isolation
Environmental & Physical
Temperature Range Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60 °C)
Humidity (non-condensing) Operating: (90% or less
Storage: 90% or less
Device Dimensions & Weights
Device Weight: .062 lbs.
Diameter: 4.73”
Height: 1.197”
Certifications FCC
CE
Warranty 1 Year

Product Comparison:


Model EAP1750H EAP1200H EAP900H EAP600 EAP350 EAP300
Frequency 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac 802.11 a/b/g/n 802.11 a/b/g/n 802.11 b/g/n 802.11 b/g/n
Maximum Data Speed 450 + 1300Mbps 300 + 867Mbps 450 + 450Mbps 300 + 300Mbps 300Mbps 300Mbps
LAN Interface 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100
Encryption WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP
SDRAM 128 MB 128 MB 128 MB 64 MB 32 MB 32 MB
FlashMemory 16 MB 16 MB 16 MB 16 MB 4 MB 4 MB
RF Power (dBm) 2.4 GHz: 28 dBm
5 GHz: 28 dBm
2.4 GHz: 26 dBm
5 GHz: 26 dBm
2.4 GHz: 28 dBm
5 GHz: 28 dBm
2.4 GHz: 29 dBm
5 GHz: 26 dBm
29 dBm 29 dBm
Receive Sensitivity ≤-94 dBm ≤-94 dBm ≤-94 dBm ≤-94 dBm ≤-94 dBm ≤-92 dBm
Antenna 6 x 5 dBi Sectorized 3D 6 x 5 dBi Sectorized 3D 6 x 5 dBi Sectorized 3D 4 x 5 dBi Embedded 2 x 5 dBi Embedded 2 x 5 dBi Embedded
Transmit Power (mW) 630mW/630 mW 400mW/400mW 630mW/630mW 800mW/400mW 800mW 800mW
Operation Modes Access Point, WDS AP, WDS Bridge Access Point, WDS AP, WDS Bridge Access Point, WDS AP, WDS Bridge Access Point, WDS AP, WDS Bridge Repeater Access Point, WDS AP, WDS Bridge Repeater Access Point, WDS AP, WDS Bridge Repeater
Number of SSID 16 (8 per radio) 16 (8 per radio) 16 (8 per radio) 16 (8 per radio 8 4
802.1q zVLAN
QoS
AP Management Software (EZC)
PoE 802.3at 802.3at 802.3at 802.3at/af 802.3af 802.3af
User Support Up to 50 on each radio Up to 50 on each radio Up to 50 on each radio Up to 50 on each radio Up to 50 Up to 50

Documentation:

Download the EnGenius Datasheet (PDF).
