EnGenius ECB1750
High-Powered, Long-Range Dual band Wireless AC1750 Indoor AP / Client Bridge

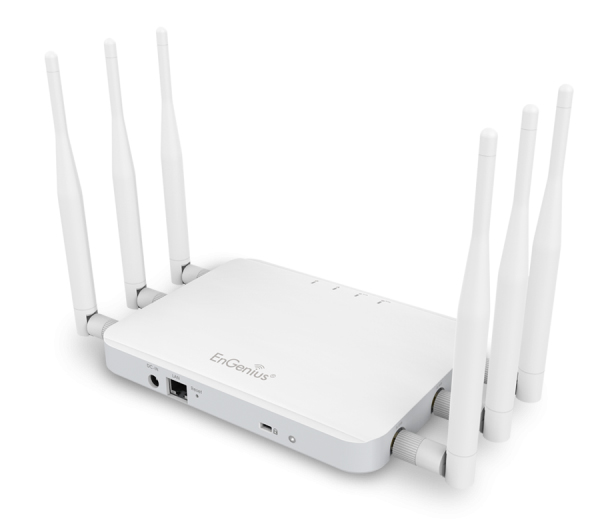

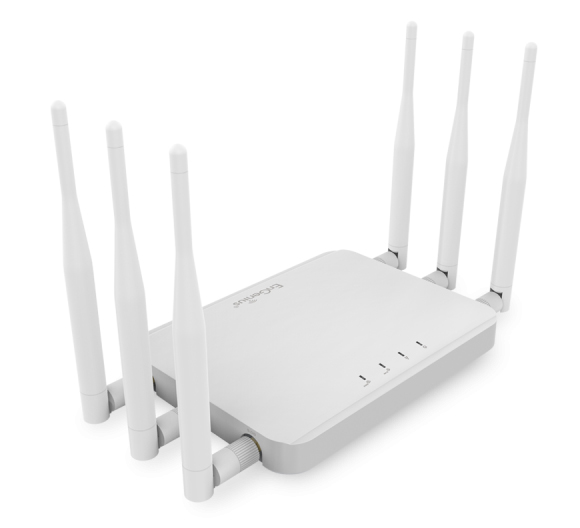

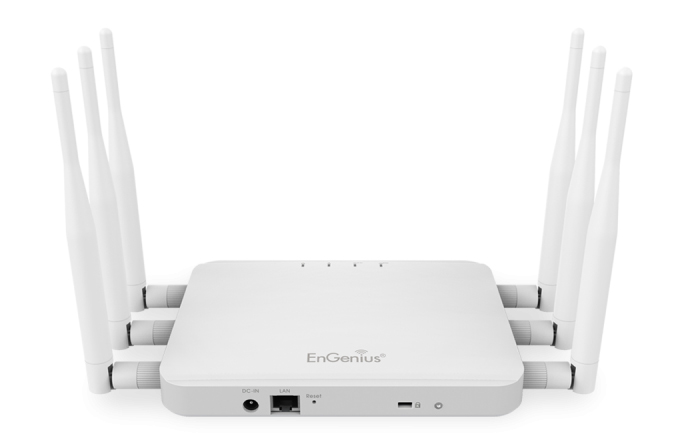

EnGenius ECB1750 Product Image

EnGenius Indoor Access Points / Bridges
EnGenius ECB1750
EnGenius ECB1750 IEEE 802.11a/b/g/n/ac High-powered Dual Band 3x3:3 Wireless Access Point/Client Bridge.
Maximum Data Rate 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz. IEEE 802.3at PoE Capable, SSID Mapping VLAN. 3x 5 dBi External Omni Directional Antennas for Each Radio Band.
#ECB1750
Our Price: $235.00

More pricing below, click here!

Overview:

The ECB1750 marks a new speed and performance breakthrough for users with 802.11ac laptops and other devices, who need to wirelessly stream HD video or transfer large files. The ECB1750 is an 802.11ac 3x3 Dual Band Indoor Access Point and Client Bridge. This desktop or wall mount Dual Band Access Point features speeds up to 1300 Mbps on the 5 GHz band when associated with AC client devices and up to 450 Mbps on the 2.4 GHz band. It can be configured as an Access Point, Client Bridge, or WDS (AP, Station, & Bridge) and features a high transmit RF power of 29 dBm on both frequency bands for long range connectivity. The ECB1750 is a cost-effective solution for hotels, multi-floor corporate offices, schools and universities, small-to-medium sized companies and even larger homes.

When set to Client Bridge mode, Ethernet-enabled devices such as printers and copiers can join a business’s existing wireless network when they are connected to the ECB1750’s Gigabit Ethernet port, making applications like printing from wireless laptops or tablets even easier. In WDS mode, the ECB1750 enables a company’s wireless network to be expanded without a wired connection between devices.

The ECB1750 also features Band Steering that shifts wireless traffic for Dual Band-capable clients to the 5 GHz band from the 2.4 GHz band, which helps to relieve network congestion and maintain optimal throughput speeds.

The ECB1750 supports wireless encryption standards such as Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption, IEEE 802.1X with RADIUS. MAC Address Filtering is also included allowing network administrators to allow or deny network access to client devices (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses. EnGenius’ EZ Controller™ Management Software for Windows, Mac OSX, and Linux (available as a free download) allows monitoring, management, and sequential firmware upgrades of EnGenius Access Points that have already been deployed in the network from the convenience of a desk.

The ECB1750’s external MIMO antenna array is comprised of three (3) detachable 5 dBi high gain antennas for the 2.4 GHz radio and three (3) detachable 5 dBi high-gain antennas for the 5 GHz radio. This combination of high transmit power, enhanced receive sensitivity, and six (6) high gain antennas results in long range connectivity to client devices and in some venues can minimize the number of Access Points necessary for a deployment.

Key Features

  • 802.11ac wireless speeds of up to 1300 Mbps on the 5 GHz band
  • 802.11n wireless speeds up to 450 Mbps on the 2.4 GHz band
  • Up to 29 dBm transmit power per band, enabling long range connectivity
  • Fast Roaming protects sensitive delay applications such as Voice and Video from disconnecting
  • Three detachable 5 dBi 2.4 GHz Omni-directional antennas
  • Three detachable 5 dBi 5 GHz Omni-directional antennas
  • Can be monitored after deployment with EnGenius EZ Controller software for Windows, Mac OS X and Linux (available as a free download)
  • Can be used with included power adapter or via PoE with PoE 802.3at capable switches or injectors
  • Dual Band / Three Stream (3x3)
  • Band Steering feature detects Dual band clients and shifts them to the 5 GHz band to relieve network congestion on the 2.4 GHz band to maintain optimal data traffic flow
  • Supports IPv4/IPv6
  • Secured Guest Network option available
  • SSID-to-VLAN Tagging

Features & Benefits:

3 Stream 802.11ac Wireless Speeds on 5 GHz
Up to 1300 Mbps on its 5 GHz for faster file transfers and smoother video streaming.

3 Stream 802.11n Wireless Speeds on 2.4 GHz
Up to 450 Mbps on its 2.4 GHz.

Dual Band operation
2.4 GHz and 5 GHz frequency bands for expanded user capacity.
Greater number of channels available on the 5 GHz frequency spectrum to support higher bandwidth applications like HD video streaming.

Long-Range Coverage with High Output RF Power and High Gain Antennas
Up to 29 dBm transmit power enables the wireless signal to penetrate floors, ceilings, and walls for greater device connectivity.
Three detachable 5 dBi high gain Omni-directional antennas for 2.4 GHz
Three detachable 5 dBi high gain Omni-directional antennas for 5 GHz

Supports Separate Mode Configuration per Frequency Band
Choose one of three modes available to the ECB1750 depending on user needs: Access Point, Client Bridge, or WDS (AP, Station, & Bridge).

Simplified Monitoring and Management
For easier monitoring and maintenance after deployment, users can monitor the device remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux (available online as a free download).

Band Steering
Detects and allows Dual Band capable clients to shift to the 5 GHz band from the 2.4 GHz band, relieving network congestion and maintain optimal data traffic flow.

Fast Roaming
Multiple ECB1750s can also be configured for Fast Roaming when used with a RADIUS server. This means that employees can be constantly connected to the network – whether they are warehouse workers scanning and capturing barcode information, employees on Wi-Fi phone calls while walking to meetings on another part of a building or healthcare professionals capturing patient information on mobile devices.

Quantum Beam Technology
Seeks the most efficient signal path to AC compatible computers and other devices and transfers data up to 1300 Mbps and nearly 3x faster than Wireless N

SSID-to-VLAN Tagging
Can be configured to broadcast up to eight (8) SSIDs per frequency band. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.

Band Steering

How Band Steering Works and Its Benefit
When wireless networks experience excessive traffic, users may be inconvenienced by slower file transfers and frequent video buffering especially on the 2.4 GHz band. Several of the Electron Series Access Points include a Band Steering option which when applied in the browser-based interface, automatically shifts the connection of Dual-Band client computers, tablets, smart phones and other devices to the 5 GHz band where there is less traffic and more available RF channels. This leaves Single-Band 2.4 GHz (802.11b/g/n) clients to operate in the 2.4 GHz band that with Band Steering activated becomes less congested.

Band Steering

Specifications:

EnGenius ECB1750 Indoor Access Point Client Bridge Specifications

EnGenius ECB1750 Indoor Access Point Client Bridge Specifications
Standards IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity Memory: 128 MB
Flash Memory 16 MB
Antenna 6 External Detachable Omni-Directional Antennas
5 dBi on 2.4 GHz and 5 GHz
Compliant with SMA type of connector

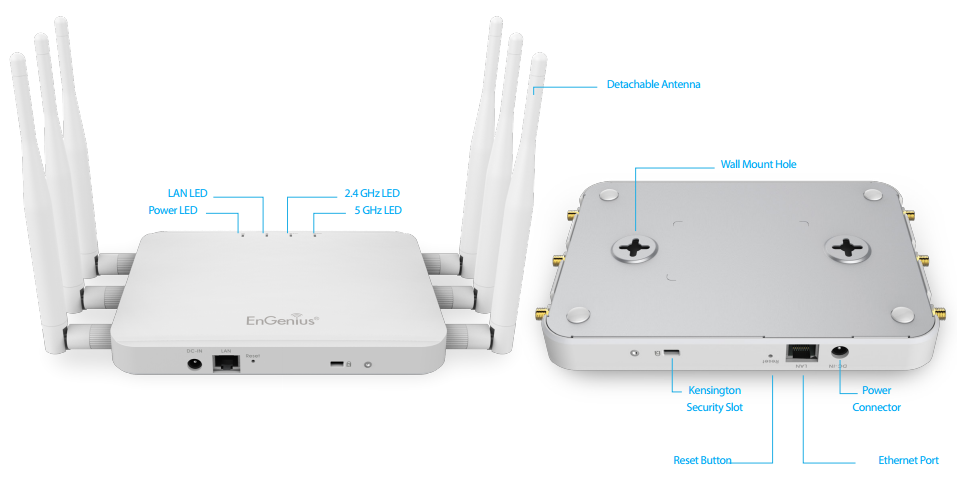

Physical Interface 1 x 10/100/1000 Gigabit Ethernet Port
1 x Reset Button
1 x Power Connector
LED Indicator 1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
1 x LAN
Power Source DC IN, 12V/2A
IEEE 802.3at Compliant Source

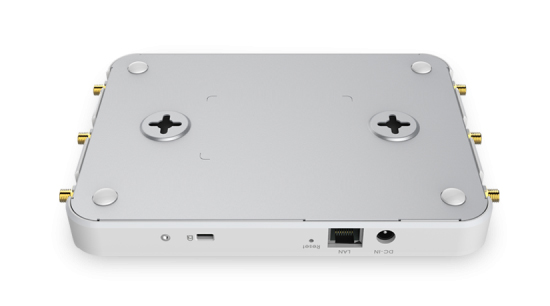

Mounting Wall Mount
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes Access Point
Client Bridge
WDS AP
WDS Bridge
WDS Station
Universal Repeater
Frequency Radio 2.4GHz:
2400MHz ~ 2835MHz
5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Transmit Power Up to 28 dBi on 2.4 & 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams 3x3:3
Supported Data Rates (Mbps) 2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
Supported Radio Technology 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization 802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID Supports up to 8 SSIDs per radio
VLAN Tagging Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
QoS Compliant with IEEE 802.11e Standard
WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Management Features Deployment Options
Standalone (Individually Managed)
Configuration Web Interface (HTTP)
CLI (Telnet)
Control Features Auto Reboot
Firmware Upgrade
Email Alert
Auto Channel
Auto Transmit Power
Band Steering
Fast Roaming
Backup / Restore
Wi-Fi Scheduler
Multicast Supported
RSSI Threshold
Security WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Guest Network
Environmental & Physical
Temperature Range Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60 °C)
Humidity (non-condensing) Operating: (90% or less
Storage: 90% or less
Device Dimensions & Weights
Device Weight: 1.20 lbs. (544.31 g)
Length: 7.44” (189 mm)
Width: 5.51” (140 mm)
Height: 1.02” (26 mm)
Package Contents ECB1750 Dual-Band Wireless AC1750 Indoor Access Point
12V/2A Power Adapter
Wall Mount Screw Kit
2 Detachable 5 dBi 2.4 GHz Omni-directional Antennas
2 Detachable 5 dBi 5 GHz Omni-directional Antennas
RJ-45 Ethernet Cable
Quick Installation Guide
Certifications FCC
CE
Warranty 1 Year

Product Comparison:


Model ECB1750 ECB1200 ECB600 ECB350 ECB300
Frequency 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac 802.11 a/b/g/n 802.11 b/g/n 802.11 b/g/n
Maximum Data Speed 450 + 1300Mbps 300 + 867Mbps 300 + 300Mbps 300Mbps 300Mbps
LAN Interface 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100
Encryption WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP WPA2 WPA WEP
SDRAM 128 MB 128 MB 64 MB 32 MB 32 MB
FlashMemory 16 MB 16 MB 16 MB 8 MB 4 MB
RF Power (dBm) 2.4 GHz: 29 dBm
5 GHz: 29 dBm
2.4 GHz: 26 dBm
5 GHz: 26 dBm
2.4 GHz: 29 dBm
5 GHz: 26 dBm
29 dBm
29 dBm
Receive Sensitivity ≤-94 dBm ≤-94 dBm ≤-94 dBm ≤-94 dBm ≤-94 dBm
Antenna 6 x 5 dBi Omni RP-SMA Female 4 x 5 dBi Omni RP-SMA Female 4 x 5 dBi Omni RP-SMA Female 2 x 5 dBi Omni RP-SMA Female 2 x 5 dBi Omni RP-SMA Female
Transmit Power (mW) 800mW/800 mW 400mW/400mW 800mW/400mW 800mW 800mW
Operation Modes Access Point, Client Bridge, WDS AP, WDS Station, Universal Repeater Access Point, Client Bridge, AP Router, WDS AP, Universal Repeater
Number of SSID 16 (8 per radio) 16 (8 per radio) 16 (8 per radio) 8 8
802.1q zVLAN
QoS
AP Management Software (EZC)
PoE 802.3at 802.3at 802.3at/af 802.3af 802.3af
User Support Up to 50 on each radio Up to 50 on each radio Up to 50 on each radio Up to 32 Up to 32

Documentation:

Download the EnGenius ECB1750 Datasheet (PDF).
