EnGenius EGS2110P
8-Port Gigabit PoE Smart Switch With Two Gigabit SFP Ports

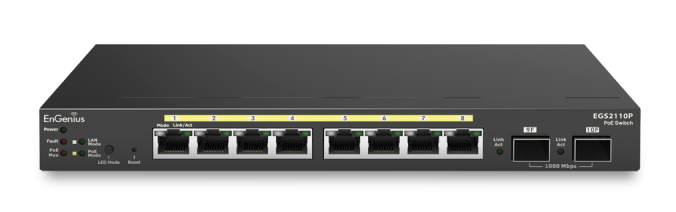

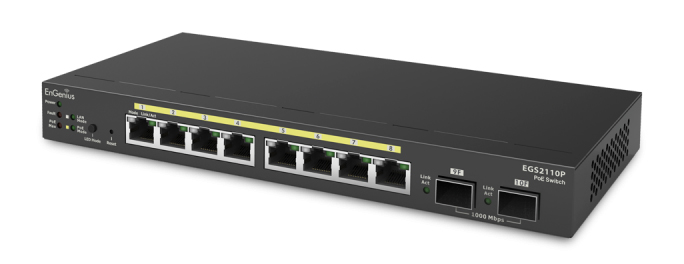

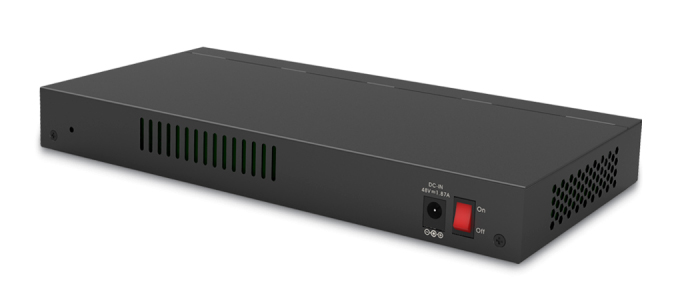

EnGenius EGS2110P Product Image

EnGenius Controllers & Switches
EnGenius EGS2110P
EnGenius EGS2110P 8-Port Gigabit Smart Switch 2 SFP Ports
#EGS2110P
Our Price: $208.00

More pricing below, click here!

Overview:

The simple but powerful EGS2110P delivers up to 15.4W per port over connected Ethernet cables to powered devices. A high-performing, cost-effective solution for small-to-medium businesses that need to connect and power VoIP phone systems, IP cameras and wireless APs.

Product Highlights

  • (8) Gigabit Ports With 802.3at/af PoE & a Total PoE Budget of 61.6W
  • (2) Dual-Speed SFP Ports for Fiber Uplinks
  • Loopback Detection; IGMP Snooping; Bandwidth Control; PoE Management
  • Embedded QoS Intelligence Prioritizes Delay-Sensitive Voice & Video

Connect computers, VoIP phones, access points and IP cameras throughout your office and move data at Gigabit speeds

The simple but powerful EGS2110P Smart PoE Switch delivers up to 15.4 watts over connected Ethernet cables to powered devices. It supports VLAN, QoS and IGMP Snooping features for priority based applications, such as IP surveillance or video/voice transitions. It also offers PoE Management on all its PoE Gigabit ports and priority-based configuration. The EGS2110P is a high performing yet cost-effective solution for small-to-medium-sized business who need keep their employees communicating and collaborating at Gigabit speeds and need to power connect VoIP (Voice-over-IP) phone systems, Wireless Access Points, and IP Cameras throughout their facility.

Features & Benefits:

Key Features

  • 8 Gigabit ports with IEEE802.3af PoE support
  • 2 SFP slots
  • External Power Adapter with 61.6w PoE Budget
  • Provides PoE Management on all ports
  • Loopback Detection
  • IGMP Snooping
  • Bandwidth Control
  • IEEE802.1Q VLAN
  • IEEE802.1p QoS

Gigabit Speed for Small Businesses

The EGS2110P is a Smart PoE Switch that offers 8 Gigabit ports with IEEE802.3af PoE Support on all its ports and 2 SFP slots for fiber uplinks.

Power Over Ethernet (PoE)

EnGenius Smat PoE (Power-over-Ethernet) Gigabit Switches are specifically designed to meet the needs of start-up and small-to-medium sized businesses. It's ideal for companies that need a way to connect and power VoIP phone systems, IP Cameras and Wireless Access Points throughout their facilities. These robust and fully-managed, yet cost-effective switches will help to keep their employees connected, safe and productive. The EGS2110P delivers up to 15.4 watts over connected Ethernet cables to powered devices. Total PoE budget is 61.6 watts.

Management

EnGenius switches also include embedded QoS intelligence to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services. For example automated voice VLAN capabilities let you plug any IP phone into your IP telephony network and receive an immediate dial tone.

Specifications:


EnGenius EGS2110P Specifications
Standard
Switching Capacity 20 Gbps
Max. Forwarding Rate (64kBytes) 14.88Mpps
Forwarding Mode Store and Forward
Packet Buffer memory 512K Bytes
Flash Memory 4 MB
Port Functions 8 10/100/1000Mbps Ports in the front panel
2 1000Mbps SFP Slot
PoE Capability PoE standard: Port 1~8 Support IEEE 802.3af
PoE Capable Ports: Port 1~8 can output up to 15.4W
PoE budget: 61.6 Watts
LED Indicator Device:
Power LED x1
Fault LED x1
PoE Max LED x1
LAN Mode LED x1
PoE Mode LED x1
SFP/Copper Ports:
LAN/PoE Mode, Link/Act
Environment & Mechanical
Temperature Range Operating: 32 to 104°F / 0 to 40°C
Storage: -40 to 158°F / -40 to 70 °C
Humidity (non-condensing) 5% - 95%
L2 Features
L2 Features Loopback Detection
IGMP Snooping v1/v2
Port Mirroring: one to one and many to one
Static MAC Address
Dynamic MAC List
Bandwidth Control
802.1Q VLAN
Port-based VLAN
Storm Control
PoE Management Power on/off per port
Power Class Configuration
Power feeding with priority
User defined power limit

BootP/DHCP Client
Firmware Burn-Proof
Cable Diagnostic

PoE/PoE+ Smart Switches Comparison:


EGS Series Model EGS2108P EGS2110P EGS5110P
10/100/1000 Ports 8 8 8
SFP 0 2 (additional) 2 (additional)
Power Type External External Internal
PoE Standard (IEEE802.3at/af) 802.3af 802.3af 802.3at/af
PoE Capable Ports port 1-4 port 1-8 port 1-8
Power Budget 61.6w 61.6w 130w
Chassis Desktop Desktop Rackmount (1U, 13 inch)
Material Metal Metal Metal
Color Gray Gray Dark Blue
Reset Button
Loopback Detection
IGMP Snooping (Supports v1, v2)
Port Mirroring
Port Trunking
Bandwidth Control
Storm Control (Broadcast / Multicast / Unknown Unicast)
802.1Q VLAN
Port-based VLAN
CoS based on 802.1p priority
CoS based on physical port
Power Class Configuration
Power feeding with priority
User defined power limit
Web-based support
Web UI supports non-IE browser (Chrome, Firefox, Safari)
PoE Injector kit
Cable Diagnostic

Documentation:

Download the EnGenius EGS2110P Datasheet (PDF).
