EnGenius EGS7228FP
24-Port Gigabit PoE+ Layer 2 Managed Switch With 4 SFP Ports

EnGenius EWS7928P Product Image

EnGenius Controllers & Switches
EnGenius EGS7228FP
EnGenius EGS7228FP 24-Port Gigabit PoE+ L2 Managed Switch with 4 Dual-Speed SFP
#EGS7228FP
Our Price: $499.00

More pricing below, click here!

Overview:

The Electron EGS7228FP Layer 2 Switch includes IGMP Snooping, MLD Snooping, Port Mirroring, Rapid Spanning Tree, Multiple Spanning Tree, Spanning Tree, VLAN group, Voice VLAN, ACL, 802.1X port security, and more. Superior performance and reliability at an attractive price point.

Product Highlights

  • (24) Gigabit PoE+ Ports With 802.3at/af Support; (4) Dual-Speed SFP Ports
  • Internal Power Supply With 370W PoE Budget
  • IGMP Snooping v1/v2/v3
  • IEEE 802.3ad Link Aggregation

Cost-effective, simple-to-use networking solutions for small-to-medium businesses

The EGS7228FP is a 24-Port (370W) Gigabit PoE+ Layer 2 Switch with 4 DualSpeed SFP ports for fiber uplinks. The EGS7228FP includes 24 Gigabit PoE (10/100/1000 Mbps) ports and four SFP (copper/hot-swappable small formfactor pluggable) Gigabit ports for optional fiber connectivity. Managing the wired portion of the network is easy using the Switch’s browser-based interface. The EGS7228FP is a full featured Gigabit Ethernet Switch with comprehensive Layer 2 switching capabilities. The EnGenius Layer 2 switch includes IGMP Snooping, MLD Snooping, Port Mirroring, Rapid Spanning Tree, Multiple Spanning Tree, Spanning Tree, VLAN group, Voice VLAN, ACL, 802.1X port security, SNMP v1/v2c/v3 and IEEE802.3ad Link Aggregation Control Protocol (LACP).

The EGS7228FP provides 802.1Q VLAN support for improved convergence and bandwidth utilization. The Switch automates the process of setting up VoIP devices on a network. Voice VLAN offers clear quality and efficient transmission for all voice communications while also providing a means of securing each broadcast domain, segregating them from each other. VLANs can be configured to segment departmental resources and can be implemented on an SMB network help to restrict access to sensitive information from one department to another.

The EGS7228FP supports IGMP Snooping, MLD Snooping, and VLAN for multicast applications. By passively snooping IGMP packets transferred between the Switch and the IP multicast host, registration information is recorded and sorted into multicast groups. The Switch can then intelligently forward traffic to only those ports that request multicast traffic. MLD Snooping enhances efficiency in selective distribution by forwarding IPv6 multicast data to receiving ports, rather than flooding all ports in a VLAN.

  • IGMPv1—Defined in RFC 1112. An explicit join message is sent to the switch, but a timeout is used to determine when hosts leave a group.
  • IGMPv2—Defined in RFC 2236. Adds an explicit leave message to the join message so that the switch can more easily determine when a group has no interested listeners on a LAN.
  • IGMPv3—Defined in RFC 3376. Support for a single source of content for a multicast group.

Priority queueing ensures high-priority traffic gets delivered efficiently, even during congestion from high traffic bursts. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. For mission critical environments, the EGS7228FP supports 802.1D, 802.1w and 802.1s Spanning Tree Protocols (STP). STP allows users to configure the switch with a redundant backup bridge path, so transmission and reception of packets can be guaranteed in the event of any failed switch on the network. The Switch supports IEEE 802.1p QoS that automatically classifies and prioritizes compliant device traffic to ensure that time sensitive data such as VoIP is forwarded without delay. To help streamline networks, 802.1p Priority Tagging places a priority tag in a specified frame placing it in a priority queue once received and enabling it to be prioritized ahead of other frames. IEEE 802.1p enables administrators to assign and designate traffic priority. This process helps applications such as VoIP and video conferencing to be delivered clear and jitter-free.

The EGS7228FP also supports 802.1X port-based authentication, so IT managers can authenticate clients via external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from unauthorized MAC or IP addresses.

This high-performing switch also features a non-blocking wire-speed architecture with a 56 Gbps switching capacity for maximum data throughput. The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Spanning Tree and Cable Diagnostics for easy troubleshooting.

This EnGenius Layer 2 Switch is designed for easy network management and can quickly be added to an existing rack of other branded L2 and L3 switches. Configuration of the Switch is made through an intuitive and user-friendly Web interface for quick and easy management. The EnGenius L2 Switch also includes SNMP (v1, v2 and v3) to collect and track data to monitor network health, manage devices, and more easily enforce critical IT controls and policies. The Switch’s Link Layer Discovery Protocol (LLDP) feature allows it and other network devices connected to it to announce and display their identity and capabilities on the local network, which helps IT managers better manage, troubleshoot or correct issues that may arise on the network.

The EGS7228FP is capable of conserving power without sacrificing operational performance. With the Energy Efficient Ethernet (EEE) standard, the network will automatically decrease its power usage when traffic is low with no setup required. The PoE Management feature lets IT managers control the PoE usage on each port so that unnecessary power consumption can be saved during off hours. The Switch can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

With a total power budget of 370W for the EGS7228FP, customers can choose to plug in up to 24 802.3at/af IP-based devices. Power-over-Ethernet (PoE) optimizes the installation and power management of network devices such as wireless Access Points (APs), Voice over IP (VoIP) phones, and IP-based surveillance cameras. In addition, the EGS7228FP’s Power-over- Ethernet (IEEE 802.3at/af) capabilities reduce installation time and costs for many new network productivity devices. Free your wireless AP deployments and IP cameras from the restrictions of power outlet proximity using a standard Cat 5 cable.

The Switch’s Gigabit Ethernet ports support IEEE 802.3at/af PoE and can supply up to 30W per port for a total PoE budget of 370W. The 24 Gigabit ports provide seamless connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The Switch’s 4 SFP slots accept fiber transceivers for extending the wired network beyond the limitation of Ethernet cabling. This is especially useful for schools with satellite classrooms, for hotels and resorts, or other businesses with multiple building properties.

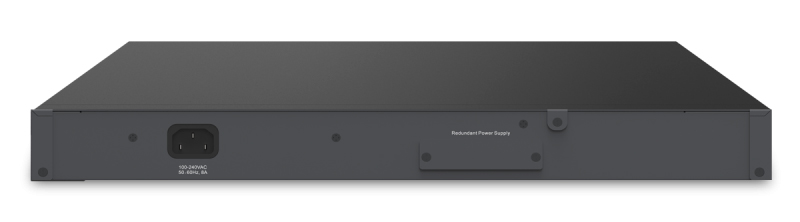

The EGS7228FP includes bracketing hardware for mounting into a switch rack. For even more power, the RPS370 is a Redundant Power Supply which allows an IT manager to extend the EGS7228FP’s PoE budget by 370W, extending the total PoE budget to 740W. Users can connect a RPS370 to the Switch to provide redundant power in case of primary power supply failure.

Features & Benefits:

PoE+ IEEE 802.3at/af Support

  • Enables PoE devices like Access Points, Client Bridges, IP Cameras, VoIP telephones and others to be powered directly from the Switch over an Ethernet cable.
  • Up to 30W per port with a total PoE budget of 370W.

Gigabit Wired Speed

Utilizes Gigabit Ethernet standard speeds of up to 1000 Mbps for each port, making it ideal for media streaming and large file transfers throughout the network.

4 Dual-Speed SFP Ports

Includes 4 SFP ports to support transceivers for fiber cabling for connectivity to offices, buildings, or other parts of the network that exceed the distance capability of regular Ethernet.

Full-Featured Layer 2 Manageability

The full-featured, managed Layer 2 Switch includes: VLAN, QoS, IGMP/MLD Snooping, STP/RSTP/MSTP, Link Aggregation Control Protocol (LACP), SNMP v1/v2c/v3, and more.

VLAN and Voice VLAN Capabilities

Provides 802.1Q VLAN support for improved convergence and bandwidth utilization and automates the process of setting up VoIP devices on a network. Voice VLAN guarantees clear quality and efficient transmission for all voice communications.

Making the Network More Secure

Supports 802.1X port-based authentication, so IT managers can authenticate clients via external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from unauthorized MAC or IP addresses.

Optional Redundant Power Supply

Allows an IT manager to extend the EGS7228FP’s PoE budget by 370W, extending the total PoE budget to 740W. Connect a RPS370 to the Switch to provide redundant power in case of primary power supply failure.

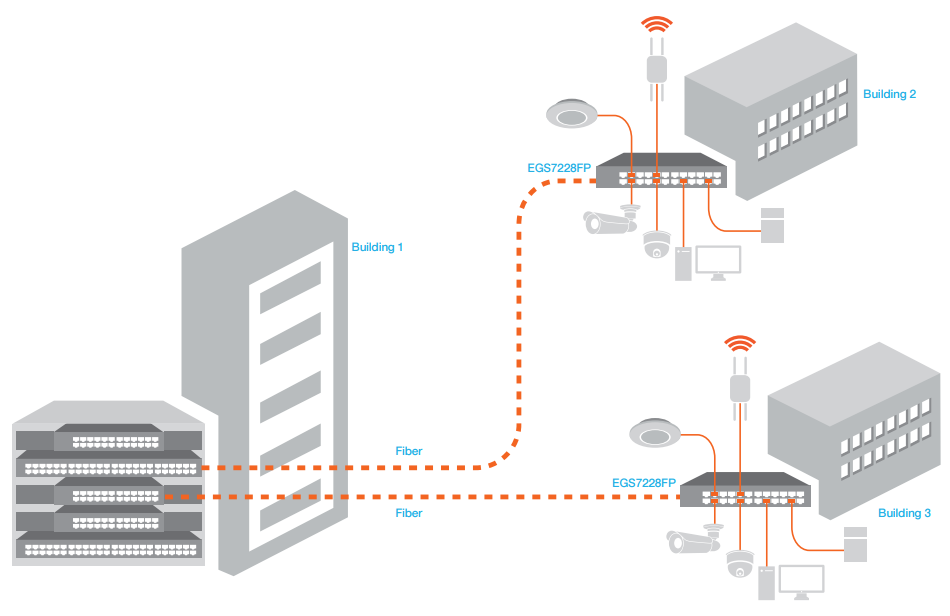

Deployment:

Deployment

Specifications:

EnGenius EGS7228FP Specifications

EnGenius EGS7228FP Specifications
Standards
General Features Switching Capacity: 56Gbps
Forwarding Mode: Store and Forward
SDRAM: 256MB
Flash Memory: 32MB
Port Functions 24 10/100/1000Mbps Ports
4 100/1000Mbps SFP Slots
1 RJ45 Console Port
PoE Capability PoE Standard: supports IEEE 802.3af/at
PoE Capable Ports: Port 1-24 output up to 30W
Total PoE Power Budget: 370Watts

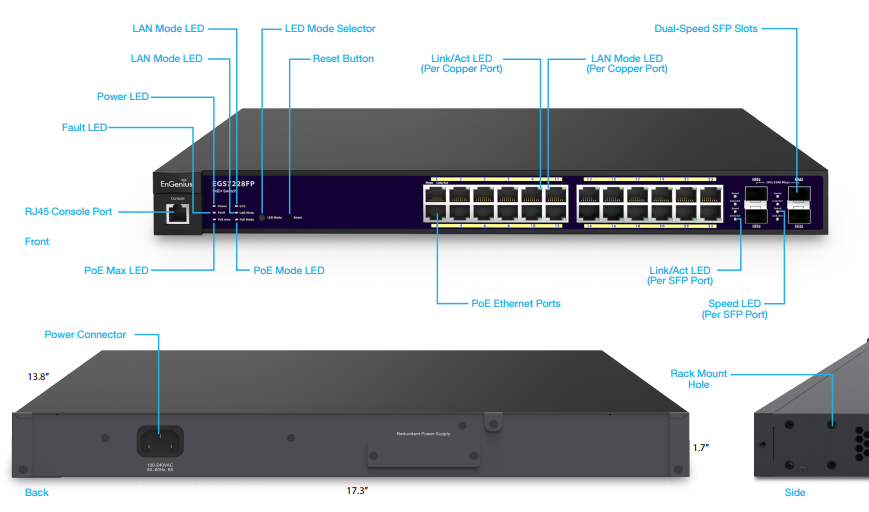

LED Indicators
Device Power LED
Fault LED
PoE Max LED
RPS LED
LAN Mode LED
PoE Mode LED
Copper Ports LAN/PoE Mode
Link/Act
SFP Ports Speed, Link/Act
L2 Features
  IEEE802.3ad Link Aggregation
  Port Mirroring
Spanning Tree Protocol 802.1D Spanning Tree (STP)
802.1w Rapid Spanning Tree (RSTP)
802.1s Multiple Spanning Tree (MSTP)

IGMP Snooping v1/v2/v3
IGMP Fast Leave
MLD Snooping
VLAN Group
Voice VLAN
Queue CoS based on 802.1p Priority
CoS based on Physical Port
CoS based on TOS
CoS based on DSCP
IEEE802.1X Port-based Access Control
IEEE802.1X Guest VLAN
Port Security
Storm Control
Port Isolation
Attack Prevention
Access Control List (ACL)
PoE Management Power on/off per port
Power class configuration
Power feeding with priority
User defined power limit

SSH Server
Telnet Server
TFTP Client
BootP/DHCP Client
SNMP v1/v2c/v3 support
TFTP Upgrade
Command Line Interface (CLI)
SNTP
RMONv1
SYSLOG
Cable Diagnostics
MIB Support RFC1213
RFC1493
RFC1757
RFC2674
Environmental & Mechanical
Temperature Range Operating: 32°F to 132°F / 0 to 50°C
Storage: -40 to 158°F / -40 to 70 ° C
Humidity 5 - 95% non-condensing
Weights & Measures Dimension (W x D x H): 17.3” x 13.8” x 1.7” / 440 mm x 350 mm x 44 mm
Technical Specifications
Standard Switching Capacity: 56Gbps
Forwarding Mode: Store and Forward
SDRAM: 128MB
Flash Memory: 16MB
Port Functions 24 10/100/1000Mbps Ports in the front panel
4 100/1000Mbps SFP Slot
1 RJ45 Console Port
PoE Capability PoE standard: Port 1~24 Support IEEE 802.3at/af
PoE Capable Ports: Port 1~24 can output up to 30W
Power budget: 370 watts
LED Indicator Device:
Power LED x1
Fault LED x1
PoE Max LED x1
LAN Mode LED x1
PoE Mode LED x1
Copper Ports:
LAN/PoE Mode, Link/Act
SFP Ports:
Link/Act

Layer 2 PoE+ Switches Comparison:


EGS Series Model EGS5212FP EGS7228P EGS7228FP EGS7252FP
10/100/1000 Ports 8 24 24 48
SFP 0 4 (additional) 4 (additional) 4 (additional)
RJ45 Console 1 1 1 1
GIgabit Uplink Port 2 0 0 0
Power Type Internal Internal Internal Internal
PoE Standard (IEEE802.3at/af) 802.3at/af 802.3at/af 802.3at/af 802.3at/af
PoE Capable Ports port 1-8 port 1-24 port 1-24 port 1-48
Power Budget 130w 185w 370w 740w
Chassis Rackmount
(1U, 13 inch)
Rackmount
(1U, 19 inch)
Rackmount
(1U, 19 inch)
Rackmount
(1U, 19 inch)
Material Metal Metal Metal Metal
Color Dark Blue Dark Blue Dark Blue Dark Blue
Reset Button

Documentation:

Download the EnGenius EGS7228FP Datasheet (PDF).
