EnGenius ENH1750EXT
High-Powered, Long-Range, Ruggedized 3x3 Dual-Band Wireless AC1750 Outdoor Access Point With Six External Omni-Directional N-Type Antennas

EnGenius ENH1750EXT Product Image

EnGenius Outdoor Access Points / Bridges
EnGenius ENH1750EXT
EnGenius ENH1750EXT Wireless Outdoor Access Point
Accessory Kit, PoE (48V) Injector, Wall Mount Kit and Pole Mount Braket Included.
#ENH1750EXT
Our Price: $690.00

More pricing below, click here!

Overview:

Under the AP Mesh mode (in 2.4 GHz), the ENH1750EXT Wireless Outdoor Access Point can be used as a central connection hub for stations or clients that support IEEE 802.11b/g/n networks. Under this mode, the ENH1750EXT can be configured with the same Mesh SSID and security password in order to associate with other ENH1750EXTs as well as connect with clients under the same SSID and security encryption signatures.

The ENH1750EXT supports Fast Roaming for clients authenticated to a RADIUS server. This means that employees can be constantly connected to the network – whether they are warehouse workers scanning and capturing barcode information, employees on Wi-Fi phone calls while walking to meetings on another part of a corporate campus, healthcare professionals capturing patient information on mobile devices, or security personnel who need uninterrupted video surveillance on a mobile device when they are alerted to and making their way to the location of an incident.

The ENH1750 includes a Band Steering feature which shifts Dual Band-capable clients to 5 GHz from the 2.4 GHz band, helping to relieve network congestion and maintain optimal data traffic speeds. This means that sensitive applications such as IP camera streams, VoIP (Voice over IP), HD video streaming and large file transfers perform with improved quality and reliability.

The ENH1750EXT is easy to install in virtually any location as well with its included PoE (Power over Ethernet) injector for quick outdoor installation. The Access Point’s internal electronics have been mounted in an IP68-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extreme environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun. These protective measures make the ENH1750EXT an ideal outdoor wireless solution for virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, indoor industrial environments, and businesses located in snowy, rainy, and arid climates.

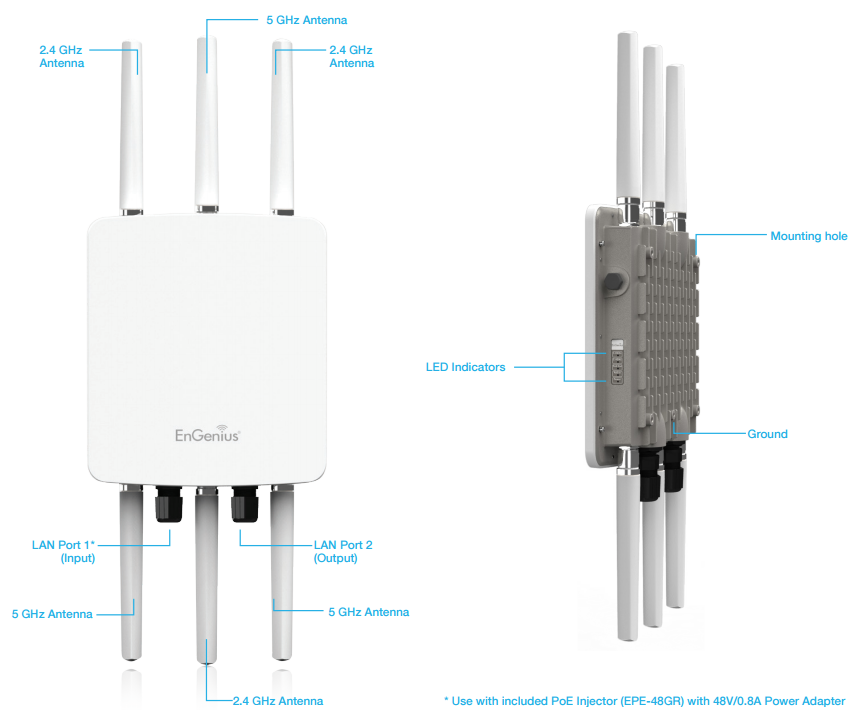

The ENH1750EXT’s external MIMO antenna array is comprised of three (3) detachable 5 dBi high gain antennas for the 2.4 GHz radio and three (3) detachable 7 dBi high-gain antennas for the 5 GHz radio. This combination of high transmit power, enhanced receive sensitivity, and six (6) high gain antennas results in long range connectivity to client devices and in some venues can minimize the number of Access Points necessary for a deployment.

For secure network configurations, the ENH1750EXT includes wireless encryption standards such as Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption and IEEE 802.1X with RADIUS. MAC Address Filtering is also included allowing network administrators to allow or deny network access to clients devices (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses.

With EnGenius’ EZ Controller Management Software, units that have already been deployed on rooftops or other difficult to access locations and other EnGenius APs or Client Bridges in the network can be reconfigured to a different operational mode or upgraded remotely without having to manually reconnect to them or re-install them onsite. When used together with its include PoE injector, the ENH1750EXT can support a tethered IP camera on the available 802.3af Gigabit port for security applications such as warehouses, stadiums, airports, corporate campuses and more.

The ENH1750EXT marks a new speed and performance breakthrough for Outdoor Wireless Access Points. Wireless users with 802.11ac laptops, tablets and other devices, who need to stream HD video or transfer large files will find this powerful AC Access Point more than up to those tasks. The ENH1750EXT is an 802.11ac 3x3 Dual Band high-powered, long-range, Mesh-capable Wireless Ruggedized Outdoor Access Point with speeds up to 1300 Mbps on 5 GHz and up to 450 Mbps on the 2.4 GHz band. It can be configured as an Access Point, Mesh (on 2.4 GHz), or WDS (AP, Station, & Bridge) for customized deployment scenarios. The ENH1750EXT is designed to operate in a variety of outdoor environments and demanding business applications, making its high-powered, long-range characteristics a cost-effective alternative to ordinary Access Points that don’t have the range and reach to connect to a growing number of wireless users who wish to connect to an outdoor network.

Product Highlights

  • High 29 dBm Transmit Power Ensures Long-Range Connectivity
  • (6) Wide-Reaching, Detachable Antennas; Pair With 3x3 Sector Antenna for Extended Coverage
  • Industrial-Grade IP68-Rated Waterproof Housing Withstands Harsh Environments
  • (2) Gigabit PoE+ Ports Offer Flexible Power Options for Connecting IP Cameras or APs

Features & Benefits:

3 Stream 802.11ac Wireless Speeds on 5 GHz

Up to 1300 Mbps on its 5 GHz for faster file transfers and smoother video streaming.

3 Stream 802.11n Wireless Speeds on 2.4GHz

Up to 450 Mbps on the 2.4 GHz band.

Dual Band Operation

2.4 GHz and 5 GHz frequency bands for expanded user capacity. Greater number of channels available on the 5 GHz frequency spectrum to support higher bandwidth applications like HD video streaming.

High Power and Long-Range Coverage

Up to 29 dBm transmit power on both the 2.4 GHz and 5 GHz radios, enabling long range connectivity.

Band Steering

Detects Dual Band clients and shifts them to the 5 GHz band to relieve network congestion on the 2.4 GHz band to maintain optimal data traffic flow.

Supports Separate Mode Configuration Per Frequency Band

Choose one of three modes available to the ENH1750EXT depending on user needs: Access Point, Mesh, or WDS (AP, Station, & Bridge).

Supports Mesh Technology (2.4GHz)

Acting as a node within a web framework, each EnGenius Access Point only needs to connect to the nearest node using the best path to transmit data, working collaboratively with other EnGenius Access Points in the network infrastructure.Provides redundant and robust connectivity for wireless deployments when running Ethernet cable is not practical.

Simplified AP Monitoring and Management

For easier monitoring and maintenance after deployment on rooftops and other hard to reach places, users can monitor the Access Point remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux (available online as a free download).

High Gain Antennas

Three detachable 5 dBi high gain omni-directional antennas for 2.4 GHz and three detachable 7 dBi high gain omni-directional antennas for 5 GHz.

IP68-Rated Waterproof Housing

Designed to withstand extremely harsh environmental conditions via its water and dust proof IP68-Rated housing. Repels UV radiation.

Deployment:

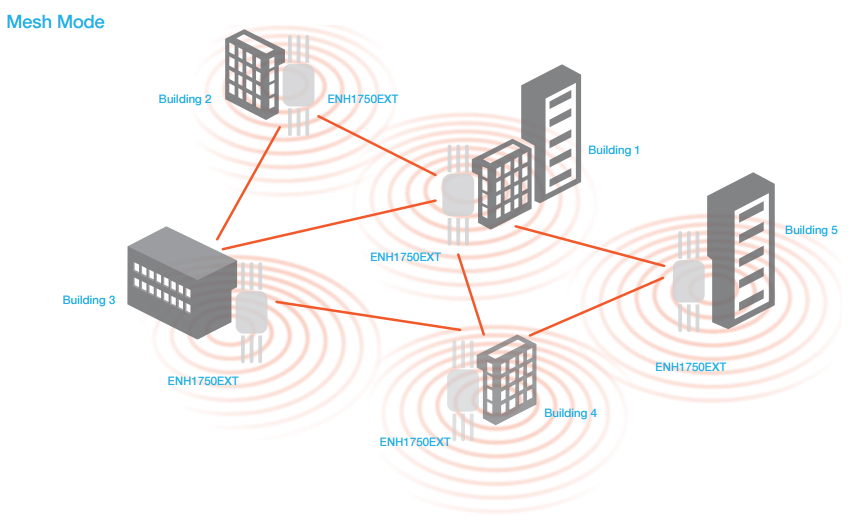

Mesh Mode

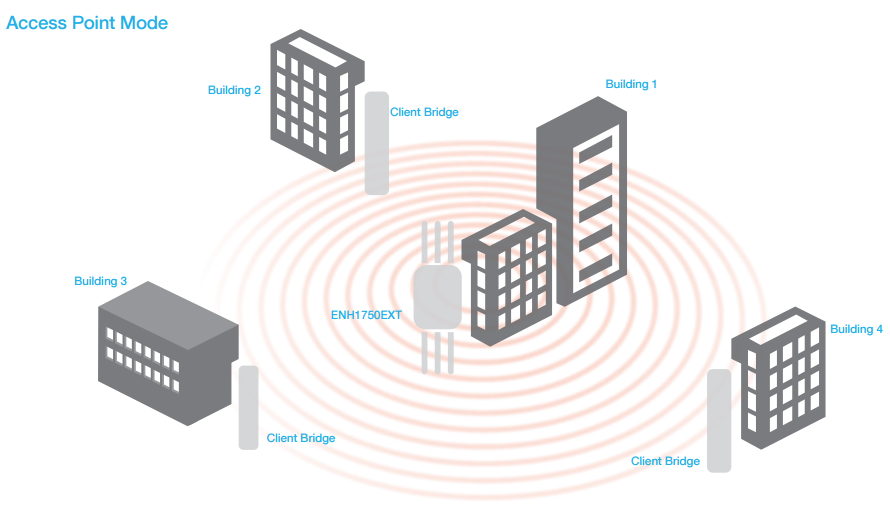

Access Point Mode

Specifications:

EnGenius ENH1750EXT Specifications

EnGenius ENS1750 Specifications
Standards IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity Memory: 128 MB
Flash Memory 16 MB
Antenna 3 x 5dBi External Omni-Directional N-Type Antennas for 2.4 GHz
3 x 7dBi External Omni-Directional N-Type Antennas for 5 GHz
Physical Interface 2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1: Supports 802.3at PoE Input
- LAN2: Data & 802.3af PoE Pass-Through
1 x Reset Button
LED Indicators 1 x Power
2 x WLAN (Wireless Connection)
2.4GHz
5GHz
2 x LAN
Power Source
External Power Adapter
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)
PSE Output LAN2 802.3af power source with included power adapter
Surge Protection 4KV
ESD Protection Contact: 6KV
Air: 8 KV
Ingress Protection Marking IP68-Rated Waterproof/Dustproof Enclosure
Mounting Wall Mount
Pole Mount
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes Access Point
WDS
Mesh
WDS Detail WDS AP
WDS Bridge
WDS Station
Frequency Radio 2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz
Transmit Power Up to 29 dBm on 2.4 GHz
Up to 29 dBm on 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams 3x3:3
Supported Data Rates (Mbps) 2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
Supported Radio Technology 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization 802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
AP Radio Settings Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
RSSI Threshold
AP Client Limiting
VLANs for AP - Multiple SSIDs
Secured Guest Network
Email Alert
Wi-Fi Scheduler
Auto Reboot
Traffic Shaping
Client Traffic Status
Management
Multiple BSSID Supports up to 8 SSIDs per radio
VLAN Tagging Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
QoS Compliant with IEEE 802.11e Standard
WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Deployment Options Standalone (Individually Managed)
Configuration Web Interface (HTTP)
CLI (Telnet)
Control Features Firmware Upgrade
Security WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation
Environmental & Physical
Temperature Range Operating: -4 °F to 158 °F, -20 °C to 70 °C
Storage: -22 °F to 176 °F, -30 °C to 80 °C
Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
Device Weight: 4.17 lbs. (1891.48 g)
Length: 11.22” (285 mm)
Width: 8.58” (217.93 mm)
Depth: 2.10” (53.34 mm)
Package Contents ENH1750EXT Neutron Series 802.11ac 3x3 Dual Band Wireless Managed Outdoor Access Point
Three (3) Detachable 2.4 GHz omni-directional antennas
Three (3) Detachable 5 GHz omni-directional antennas
Power Adapter (48V/0.8A)
PoE Injector (EPE-48GR)
Grounding Cable
Pole Mount Bracket
Wall Mount Base
Mounting Screw Set
Quick Installation Guide
Certifications FCC
CE
Warranty 1 Year

Documentation:

Download the EnGenius ENH1750EXT Datasheet (PDF).
