EnGenius ENH202
High-Powered, Long-Range Wireless N300 Outdoor Bridge

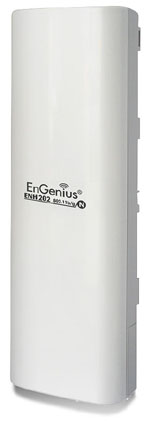

EnGenius ENH202 Product Image

EnGenius Outdoor Access Points / Bridges
EnGenius ENH202
EnGenius ENH202 802.11 b/g/n 300 Mbps Outdoor High Power 800mW Access point/Bridge
Accessory Kit, PoE (24V) Injector and Pole Mount Strap Included.
#ENH202
Our Price: $99.00

More pricing below, click here!

Overview:

ENH202 is a high-speed long-range outdoor 802.11n Wireless Access Point (WAP) / Bridge that operates on 2.4GHz band that is compliant with the IEEE802.11b/g/n standards and features a MIMO (Multiple In/Multiple Out) antenna design delivering a wireless data rate of up to 300Mbps.

The versatile, high-speed ENH202 can function as a Wireless Access Point, Client Bridge, Client Router, or Wireless Distribution System (WDS) Bridge. Utilizing its integrated internal 10dBi antenna and its high power output of up to 800mW, the ENH202 delivers higher throughput across an extended range making it an ideal CPE offering for a Wireless Internet Service Provider.

ENH202 also features a robust security feature set that includes support for 64/128/256-bit WEP encryption, WPA/WPA2 Personal and Enterprise encryption, 802.1x authentication, hidden SSID and MAC address filtering. The multiple operation modes of the ENH202 make it an ideal solution for creating a high-speed, stable and highly secure outdoor wireless link between buildings, connecting surveillance cameras, or connecting outdoor digital sign to an office network.

Product Highlights

  • High 29 dBm Transmit Power Extends Wireless Coverage Outdoors
  • Focused 10 dBi Directional Antenna Beam for Long-Range Connections
  • Industrial-Grade, IP65-Rated Housing Withstands Harsh Environments
  • PoE-Compatible 10/100 Port & Second 10/100 Port for Connecting an IP Camera or AP

Ideal For:

EnGenius ENH202 deployment

Features:

  • High-output power up to 29 dBm delivers superior range and coverage
  • Fully interoperable with IEEE 802.11b/IEEE 802.11g/IEEE 802.11n-compliant devices
  • High-speed data rates up to 300 Mbps make the ENH202 ideally suited for handling heavy data payloads such outdoor security camera, video streaming, etc.
  • WPA2/WPA/ WEP/ IEEE 802.1x support and MAC address filtering ensure secure network connections
  • RSSI indicator makes it easy to select the best signal for Access Point connections
  • Power-over-Ethernet capabilities allow for flexible installation locations and cost savings
  • Four SSIDs let clients access different networks through a single Access Point, and assign different policies and functions for each SSID
  • Multi-function operation (CB/AP/WDS/APRouter) modes provide flexible deployment
  • The AP-Router mode with PPPoE/PPTP, DHCP server function support in special network deployment in which the CPE also serves as Internet gateway
  • QoS (WMM) support enhances performance and user experiences

Differentiators:

  • High-Power Long Range cover
  • Maximum 800mW Power output ensures robust signal overcoming long distances barrier
  • Provides superior Wi-Fi coverage over competitors
  • High performance six time as fast as wireless G. The Maximum wireless connection rate is up to 300 Mbps. Backward compatible to wireless b/g network.
  • Integrated Dual Polarity Antenna Design with 10dBi gain
  • Selectable vertical or horizontal antenna polarity to avoid interference and Maximize performance
  • Design for Outdoor Deployment
  • IP55 waterproof housing against rain, moisture
  • Cable accessory kit prevents rain and dew from getting into the device from a cable connection
  • Permits different levels of network access
  • Broadcast multiple SSID when it is in AP mode
  • VLAN tagging allows different access levels

Specifications:

EnGenius ENH202 Specifications
Hardware Specifications
MCU: Atheros AR7240
Memory: 32 MB
Flash: 8 MB
Physical Interface:
  • 10/100 Fast Ethernet port x 2
  • One Reset button
LED’s Status:
  • Power (Status)
  • LAN1/LAN2 (10/100Mbps)
  • WLAN (Wireless is up)
  • 3 x Link Quality (Client Bridge mode)
Power requirements:
  • Active Ethernet: (Power over Ethernet) Proprietary PoE design
  • Power Adapter: 24VAC / 0.6A
RF Specifications
Wireless standard: IEEE802.11 b/g/n
Frequency Band: 2.412 ~ 2.472GH (b/g/n)
Modulation Technologies:
  • IEEE 802.11b: DBQSK, DQPSK, CCK
  • IEEE 802.11g: BQSK, QPSK, 16-QAM, 64-QAM
  • IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Operating Channels: 11 channels
Radio Frequency Band:
Channel Data Rate Tx Avg. Power (±2dBm) Rx Sensitivity (±2dBm)
802.11b
(2.412 ~ 2.472GHz)
1Mbps 28 -97
2Mbps 28 -95
5.5Mbps 28 -92
11Mbps 28 -89
802.11g
(2.412 ~ 2.472GHz)
6Mbps 28 -96
9Mbps 28 -93
12Mbps 28 -89
18Mbps 28 -85
24Mbps 27 -81
36Mbps 26 -79
48Mbps 25 -76
54Mbps 24 -75
802.11n
(2.412 ~ 2.472GHz)
MCS0 / MCS8 29 -95
MCS1 / MCS9 29 -92
MCS2 / MCS10 29 -87
MCS3 / MCS11 29 -85
MCS4 / MCS12 26 -80
MCS5 / MCS13 25 -79
MCS6 / MCS14 24 -74
MCS7 / MCS15 23 -73
Antenna: Internal Antenna x 2
Antenna gain: 10 dBi
Frequency Band Range: 2.4 GHz ~ 2.5 GHz
Horizontal Beam width: 70°
Vertical Beam width: 21°
Antenna Polarity: Dual-Polarized: Vertical/Horinzontal
This product does not include an external antenna connector.
Software Specifications
Topology: Infrastructure
Protocol: IEEE802.3, 802.3U, 802.11 b/g/n (2.4 GHz)
Operation mode: Client Bridge/Access Point/WDS bridge/Client Router
Service: DHCP server/client
VPN: VPN Pass-through
Networking: PPPoE, PPTP
Narrow bandwidth (selectable 5MHz/10MHz/20MHz/40MHz)
Management:
Firmware upgrade: Reset & Backup, Ping & Trace Route
MIB: MIB I, MIB II(RFC1213), Private MIB
SNMP: SNMP v1, v2c
Security:
  • WEP Encryption-64/128/152 bit
  • WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
  • WPA/WPA2 Enterprise (WPA-EAP using TKIP)
  • 802.1x Authenticator
  • Hide SSID in beacons
  • MAC address filtering, up to 50 field
  • Wireless STA (Client) connected list
QoS: WMM (Wi-Fi Multimedia)
Environment & Physical
Temperature Range
  • Operating: -20°C to 70°C (-4°F to 158°F)
  • Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing): 0%~90% typical
Dimensions: Length: 10.24” (260mm) x Width: 3.31” (84mm) x Height: 2.17” (55mm)
Weight: 0.9 Ib
Certifications: FCC, CE, IC

FAQs:

General FAQs

What frequency band ENH202 is running on?
The ENH202 runs on 2.4GHz band.

What wireless network standard does ENH202 complies with?
IEEE802.11n

Troubleshooting FAQs

What is the default IP address of the ENH202?
The default IP address is 192.168.1.1

I plugged an Ethernet cable from the PoE switch to the LAN port of ENH202, how come it does not work?
The ENH202 uses a proprietary PoE injector and will not work with standard 802.3af-compliant PoE switches. Please use the included power adapter, PoE injector in the package.

How come I cannot change the IP address to the one I specified after I click "Accept"?
Clicking Accept does not apply the changes. To apply them, use Status > Save/Load. This is a safety feature the ENH series provide to allow user go over all configurations before commence them.

How come the device does not take the configs I put in?
Clicking Accept does not apply the changes. To apply them, use Status > Save/Load. This is a safety feature the ENH series provide to allow user go over all configurations before commence them.

Do I need to purchase antenna for ENH202? Where can I plug the antenna on?
The ENH202 has built-in high-gain 13dBi directional dual-polarity antennas which give you plenty of power. You don't need to buy another antenna. Since it uses built-in antenna, there is no port for addtional antenna to plug in.

Documentation:

Download the EnGenius ENH202 Datasheet (PDF).
