EnGenius ENH900EXT
High-Powered, Long-Range, Ruggedized 3x3 Dual-Band Wireless N900 Outdoor Access Point

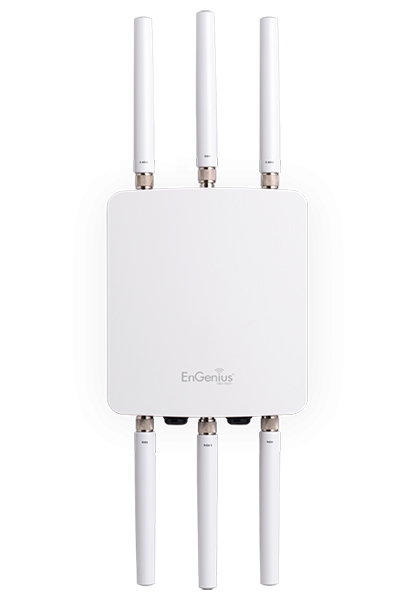

EnGenius ENH900EXT Product Image

EnGenius Outdoor Access Points / Bridges
EnGenius ENH900EXT
EnGenius ENH900EXT Wireless Outdoor Access Point
Accessory Kit, PoE (48V) Injector, Wall Mount Kit and Pole Mount Braket Included.
#ENH900EXT
Our Price: $529.00

More pricing below, click here!

Overview:

The ENH900EXT is a high-powered, long-range, Mesh-capable 3x3 Dual-Band Wireless 802.11a/b/g/n Outdoor Access Point with speeds up to 450 Mbps on both its high-powered 2.4 GHz and 5 GHz radios. It can be configured as an Access Point, Mesh, or WDS (AP, Station, & Bridge). The ENH900EXT is designed to operate in a variety of outdoor environments making its high-powered, long-range characteristics a cost-effective alternative to ordinary Access Points that don’t have the range and reach to connect to a growing number of wireless users who wish to connect to a business network.

The ENH900EXT supports Mesh Networking in the 2.4 GHz frequency band to provide redundant and robust connectivity for wireless deployments when running Ethernet cable is not practical. Mesh networking allows The Access Point also supports seamless roaming throughout the network. Nodes in the Mesh network are chosen via the quickest and safest path to keep client devices like Wi-Fi phones, tablets, laptops, and other devices connected as they move in campus-wide network deployments. When new Access Points are added, the new node is incorporated automatically to the network and in the event that an Access Point fails, surrounding nodes will pick up the wireless devices without any interruption of signal.

The ENH900EXT is easy to install in virtually any location with its included PoE (Power over Ethernet) injector for quick outdoor installation. With EnGenius’ EZ Controller™ Management Software, units that have already been deployed on rooftops or other difficult to access locations and other EnGenius APs or Client Bridges in the network can be reconfigured to a different operational mode or upgraded remotely without having to manually reconnect to them or re-install them onsite. The ENH900EXT also supports wireless encryption safeguards, including Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption and IEEE 802.1X with RADIUS. The ENH900EXT supports Wireless MAC Filtering, allowing network administrators to allow or deny network access to wireless clients (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses.

The ENH900EXT’s internal electronics have been mounted in an IP68-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extremely harsh environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun. These protective measures make the ENH900EXT an ideal outdoor wireless solution for virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, and businesses located in snowy, rainy, and arid climates.

Key Features / Benefits:

High Power and Long-Range Coverage
Up to 29 dBm transmit power, enabling long range connectivity

Supports Mesh
Supports Mesh networking in the 2.4 GHz frequency band to provide redundant and robust connectivity for wireless deployments when running Ethernet cable is not practical. Supports seamless roaming.

Dual Band N900 Wireless Speeds
Dual Band for expanded user capacity. Up to 450 Mbps on both the 2.4 and 5 GHz frequency bands for faster connectivity.

Supports Separate Mode Configuration Per Frequency Band
Choose one of three (3) modes available to the ENH900EXT depending on your need: Access Point, Mesh, or WDS (AP, Station & Bridge).

Simplified AP Monitoring and Management
EZ Controller wireless Access Point software for Windows, Mac OS X and Linux (free online download) for easier monitoring and maintenance after deployment on rooftops and other hard to reach places.

IP68-Rated Waterproof Housing

  • Designed to withstand extremely harsh environmental conditions.
  • Repels UV radiation.
  • Water and dust proof.

SSID-TO-VLAN
Can be configured to broadcast up to eight (8) SSIDs per frequency band. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.

Features & Benefits:

Mesh for More Reliable Wireless Coverage

Under the AP Mesh mode, the ENH900EXT Wireless Outdoor Access Point can be used as a central connection hub for stations or clients that support IEEE 802.11a/b/g/n networks. Under this mode, the ENH900EXT can be configured with the same Mesh SSID and security password in order to associate with other ENH900EXTs as well as connect with clients under the same SSID and security encryption signatures. For example, installers can use one band to connect the ENH900EXT to the Mesh network topology and the other band to broadcast traffic over the network. Acting as a node within a web framework, each ENH900EXT only needs to connect to the nearest node using the best path to transmit data, working collaboratively with other ENH900EXTs in the network infrastructure to function.

Roaming

The ENH900EXT also supports Roaming for clients authenticated to a RADIUS server. This means that employees can be constantly connected to the network – whether they are warehouse workers scanning and capturing barcode information, employees on Wi-Fi phone calls while walking to meetings on another part of a corporate campus, healthcare professionals capturing patient information on mobile devices, or security personnel who need uninterrupted video surveillance on a mobile device when they are alerted to and making their way to the location of an incident.

The ENH900EXT also includes wireless encryption safeguards, such as Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption, and IEEE 802.1X with RADIUS. Wireless MAC Filtering is also included allowing network administrators to allow or deny network access to wireless clients (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses. The ENH900EXT is easy to install in virtually any location as well with its included PoE (Power over Ethernet) injector for quick outdoor installation. With EnGenius’ EZ Controller™ Management Software, units that have already been deployed on rooftops or other difficult to access locations and other EnGenius APs or Client Bridges in the network can be reconfigured to a different operational mode or upgraded remotely without having to manually reconnect to them or re-install them onsite.

Support for IP Surveillance Cameras

When the ENH900EXT is powered with the included 48V/0.8A PoE injector (EPE-48GR) the second Gigabit Ethernet Port (LAN 2) on the Access Point can be used to connect and power an IP Surveillance Camera through a standard Ethernet cable. This eliminates the need to run a separate power cable and plug in a dedicated power adapter just for the IP Camera which can be problematic for installations on light poles or under eaves of roofs.

Waterproof / Dustproof for Harsh Outdoor Enviornments

The ENH900EXT’s internal electronics have been mounted in an IP68-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extremely harsh environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun. These protective measures make the ENH900EXT an ideal outdoor wireless solution for virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, and businesses located in snowy, rainy, and arid climates.

High Power and Long-Range Coverage

Up to 29 dBm transmit power, enabling long range connectivity.

Supports Mesh

Supports Mesh networking in the 2.4 GHz frequency band only to provide redundant and robust connectivity for wireless deployments when running Ethernet cable is not practical.

Band Steering

When Band Steering is activated, the ENH900EXT automatically detects Dual Band (5 GHz-capable clients) and shifts them to the 5 GHz band to relieve network congestion on the 2.4 GHz band for more optimal data traffic flow.

Dual-Band N900 Wireless Speeds

Dual-Band for expanded user capacity, up to 450 Mbps on both the 2.4 GHz and 5 GHz frequency bands for faster connectivity.

Supports Separate Mode Configuration per Frequency Band

Choose one of three modes available to the ENH900EXT depending on your need: Access Point, Mesh, or WDS (AP, Station & Bridge).

Simplified AP Monitoring and Management

EZ Controller wireless Access Point software for Windows, Mac OS X and Linux (available as a free online download) for easier monitoring and maintenance after deployment on rooftops and other hard to reach places.

SSID-to-VLAN Tagging

Can be configured to broadcast up to eight (8) SSIDs per frequency band. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.

Specifications:


EnGenius ENH900EXT Specifications
Dual Radios
  • IEEE802.11a/n on 5 GHz - Maximum: 450 Mbps
  • IEEE802.11b/g/n on 2.4 GHz- Maximum: 450 Mbps
  • Dual concurrent radio support
Transmit Power (Maximum Value) Maximum 29 dBm on both 2.4GHz and 5 GHz
Radio Technologies
  • 802.11b: Direct-sequence spread-spectrum (DSSS)
  • 802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
  • 802.11n with 20/40 MHz channel width
  • 802.11a/b/g with 20 MHz channel width
Modulation Types
  • 802.11b: BPSK, QPSK, CCK
  • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Data Rates
  • 802.11b: 1, 2, 5.5, 11
  • 802.11a/g: 6, 9, 12, 18, 36, 48, 54
  • 802.11n: 6.5 to 450 (MCS0 to MCS15)
Standard
Power Source
  • External Power Adapter on PoE Injector (EPE-48GR); DC IN, 48V/0.8A
  • IEEE 802.3at Compliant
Antennas
  • Three (3) External Detachable 5 dBi Omni-Directional High Gain antennas for 2.4 GHz
  • Three (3) External Detachable 7 dBi Omni-Directional High Gain antennas for 5 GHz
  • Compliant with N type Connector
Physical Interface
  • ENH900EXT Device:
    • LAN 1: RJ-45 Gigabit Ethernet (10/100/1000 Mbps) – Input
    • LAN 2: RJ-45 Gigabit Ethernet (10/100/1000 Mbps) – PoE Capable 802.af (Output)
  • EPE-48GR PoE Injector:
    • 1 x Reset Button
    • 1 x AP/Bridge Port
    • 1 x DC IN 48 V/0.8A
    • 1 x Gigabit Ethernet (10/100/1000 Mbps) Port
LED Indicator
  • Power
  • LAN 1
  • LAN 2
  • 2.4 GHz
  • 5 GHz
Wireless Functional List
Operation Modes Access Point / Mesh / WDS
WDS Detail WDS AP / WDS Bridge / WDS Station
Security
  • WEP (64/128/152bit)
  • WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
  • Hidden SSID in beacons
  • MAC address filtering, up to 50 MACs
  • Wireless STA (Client) Connection List
  • HTTPS
  • SSH
Effective Control
  • CLI
  • Distance Control (AcK Timeout)
  • Multicast
  • Wi-Fi Scheduler
  • Band Steering
  • Seamless Roaming
  • Fast Handover
Management Auto Channel Selection
SSIDs
  • BSSID support
  • 16 SSIDs support
  • Support 8 SSIDs on each 2.4 GHz and 5 GHz bands
VLAN Tagging
  • Independent VLAN settings can be enabled or disabled
  • Any packet without a VLAN tag will be inserted with a PVID (Ethernet Port VID)
  • VLAN Pass-through (over WDS Bridge)
  • SNMP v1/v2c/v3, MIB I/II, Private MIB
  • Save Configuration as Default
  • Client Traffic Status
  • Guest Network
  • Email Alert
  • QoS: Complaint with IEEE 802.11e standard
  • RADIUS Accounting
Environmental & Mechanical
Temperature Range
  • Operating: -4 °F to 158 °F (-20 °C to 70 °C)
  • Storage: -22 °F to 176 °F (-30 °C to 80 °C)
Humidity (non-condensing)
  • Operating: 90% or less
  • Storage: 90% or less
Weights & Measures
  • Length: 11.22”
  • Width: 8.58”
  • Depth: 2.1”
  • Weight: 4.17lb
Certifications FCC, IC, CE
Warranty 1 Year
Surge / ESD Protection
  • Surge Protection: 20KV (Certificated standard is 8KV)
  • ESD Protection: 6KV (Certificated standard is 1KV)
Waterproof IP68 Rated Enclosure
Package Contents
  • ENH900EXT Dual-Band N900 Wireless Outdoor Access Point
  • 3x detachable 5 dBi 2.4 GHz Antenna
  • 3x detachable 7 dBi 5 GHz Antenna
  • Power Adapter (48V/0.8A)
  • PoE Injector (EPE-48GR)
  • Grounding Cable
  • Pole Mount Bracket
  • Wall Mount Base
  • Mounting Screw Set
  • Quick Installation Guide

Documentation:

Download the EnGenius ENH900EXT Datasheet (PDF).
