EnGenius ENS1200
Dual Band Wireless AC1750 Outdoor Access Point

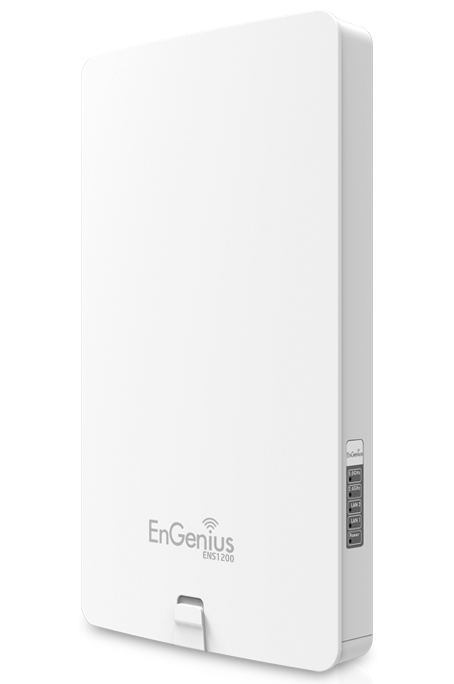

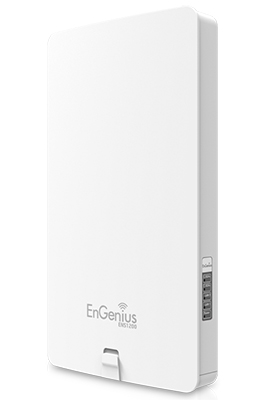

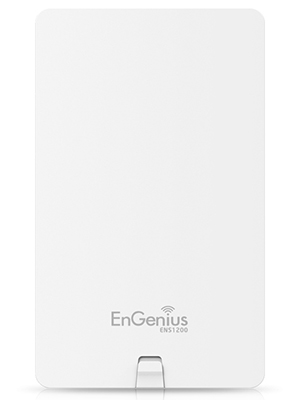

EnGenius ENS1200 Product Image

EnGenius Outdoor Access Points / Bridges
EnGenius ENS1200
EnGenius ENS1200 IEEE 802.11ac 1.17 Gbps Wireless Access Point
#ENS1200
Our Price: $195.00

More pricing below, click here!

Overview:

The ENS1200 offers expanded user capacities to outdoor locations such as patio cafes and expansive residential yards and decks. High transmit power ensures greater wireless coverage outdoors while serving more users with fast 11ac wireless speeds. Band Steering shifts dual-band devices to 5 GHz, improving performance.

Operating on both the 2.4 GHz and 5 GHz frequency bands and supporting 802.11a/b/g/n/ac standards, the ENS1200 features wireless speeds up to 300 Mbps on the 2.4 GHz and 866 Mbps on the 5 GHz frequency bands and a Gigabit port for connecting to 802.3atcapable PoE Switches. The ENS1200 is built with a higher signal strength and sensitivity than other Access Points in its class allowing for fewer Access Points required in a deployment. These specifications assist in reducing dead zones in a deployed WLAN and help boost received signal quality on both ends of the AP as well as client devices in the network.

The ENS1200 can be configured in a number of different modes such as Access Point, WDS AP and WDS Bridge modes which give VARs, system integrators, IT managers, and installers the ability to configure the device for discrete functionality based on their unique network topology or scalable needs. Unlike ordinary outdoor APs, the ENS1200 can be used in a number of configurations and supports connectivity to and from other outdoor client bridges in multiple-building campus deployments.

For secure network configurations, the ENS1200 includes wireless encryption standards such as Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption and IEEE 802.1X with RADIUS. MAC Address Filtering is also included allowing network administrators to allow or deny network access to clients devices (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses.

The ENS1200 supports Fast Roaming for clients authenticated to a RADIUS server. This means that employees can be constantly connected to the network – whether they are warehouse workers scanning and capturing barcode information, employees on Wi-Fi phone calls while walking to meetings on another part of a corporate campus, healthcare professionals capturing patient information on mobile devices, or security personnel who need uninterrupted video surveillance on a mobile device when they are alerted to and making their way to the location of an incident.

In addition, the ENS1200 employs Band Steering, a feature that automatically detects Dual Band clients and moves them from the 2.4 GHz band to the 5 GHz band. This allows applications such as video streaming to flow more easily and helps to eliminate traffic congestion on the 2.4 GHz band.

Network administrators can also configure an additional layer of security by tagging each of the ENS1200’s SSIDs to a company’s established VLANs. This added feature helps to ensure that only users in specific VLANs are accessing information they have been authorized to access even when they work outside the building or from another building on the corporate campus that has been bridged to a main office via one or more ENS1200 units. These settings are available upon initial installation with the device’s browser-based Graphical User Interface and through EZ Controller.

With EnGenius’ EZ Controller Management Software, units that have already been deployed on rooftops or other difficult to access locations and other EnGenius APs or Client Bridges in the network can be reconfigured to a different operational mode or upgraded remotely without having to manually reconnect to them or re-install them onsite. When used together with its included PoE injector, the ENS1200 can support a tethered IP camera on the available 802.3af Gigabit port for security applications such as warehouses, stadiums, airports, corporate campuses and more.

The ENS1200’s internal MIMO antenna array is comprised of two (2) internal 5 dBi omni-directional high-gain antennas for 2.4 GHz and two (2) internal 5 dBi omni-directional high-gain antennas for 5 Ghz . This combination of high transmit power and enhanced receive sensitivity results in long range connectivity to client devices and in some venues can minimize the number of Access Points necessary for a deployment.

The ENS1200 is easy to install in virtually any location as well with its included PoE (Power over Ethernet) injector for quick outdoor installation. The Access Point’s internal electronics have been mounted in an IP55-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extreme environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. These protective measures make the ENS1200 an ideal outdoor wireless solution for virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, indoor industrial environments, and businesses located in snowy, rainy, and arid climates.

Product Highlights

  • Dual-Band 11ac Speeds to 867 Mbps on 5 GHz; 300 Mbps on 2.4 GHz
  • IP55-Rated Weatherproof Housing Withstands Harsh Environments
  • Robust 27 dBm Transmit Power Extends Outdoor Connectivity
  • PoE+ Primary Gig-Port & Secondary Pass-Through Port Provide Added Flexibility

Features & Benefits:

Key Features

  • IEEE 802.11a/b/g/n/ac Dual Concurrent Architecture
  • Up to 27 dBm transmit power on the 2.4 GHz and 26 dBm transmit power on 5 GHz frequency bands, enabling long range connectivity
  • 802.11ac wireless speeds of up to 866 Mbps on the 5 GHz frequency band and 802.11n wireless speeds of up to 300 Mbps on 2.4 GHz band
  • Internal 5 dBi high gain omni-patch antennas for both 2.4 GHz and 5 GHz
  • Two (2) Gigabit Ethernet Ports
  • Multiple Operation Modes: AP & WDS (AP & Bridge)
  • Band Steering
  • SSID-to-VLAN Tagging
  • IP55-Rated waterproof housing for exposure to the elements
  • SNMP V1/V2c/V3, MIB I/II Supported
  • Can be monitored after deployment with EnGenius EZ Controller™ software for Windows, Mac OS X and Linux (available as a free download)
  • Fast Roaming
  • Navigate via Browser Based GUI

Faster File Transfers and Smoother Video Streaming

Up to 866 Mbps on the 5 GHz and up to 300 Mbps on the 2.4 GHz frequency bands for faster file transfers and smoother video streaming.

High-Power and Long-Range Coverage

Up to 27 dBm transmit power, enabling long range connectivity.

Dual Band Operation for Less Congested Networks

Enables 2.4 GHz and 5 GHz frequency bands to be used for expanded user capacity. Greater number of channels available on the 5 GHz frequency spectrum supports higher bandwidth applications like HD video streaming while relieving congestion on the 2.4 GHz band.

Maximize RF Performance With High Gain Antennas

Built-in 5 dBi high gain internal antennas for each band.

Keeps Employees, Staff Constantly Connected to the Network

When used with a RADIUS server, Fast Roaming feature enables users to be constantly connected to a network as they move throughout a building. This is especially useful for voice and video applications preventing delays and dropped signals for users on mobile devices.

Improve and Optimize Wireless Traffic with Band Steering

Band Steering automatically detects Dual Band clients and moves them from the 2.4 GHz band to the 5 GHz band. This allows applications such as video streaming to flow more easily and helps to eliminate traffic congestion on the 2.4 GHz band.

Flexible Deployment Scenarios

Choose one of two (2) modes available to the ENS1200 depending on user needs: Access Point or WDS (AP & Bridge).

Simplified AP Monitoring and Management

For easier monitoring and maintenance after deployment on rooftops and other hard to reach places, users can monitor the Access Point remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux (available online as a free download).

Combat the Elements with IP55-Rated Waterproof Housing

Designed to withstand harsh environmental conditions via its waterproof IP55-Rated housing.

SSID-to-VLAN Tagging

Can be configured to broadcast up to sixteen (16) SSIDs (eight (8) SSIDs per band). Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.

User-Friendly Installation Kit

Includes a proprietary PoE (Power-over-Ethernet) kit comprised of a PoE injector and Power Adapter. Also includes a mast mount kit with binding strap.

Deployment:

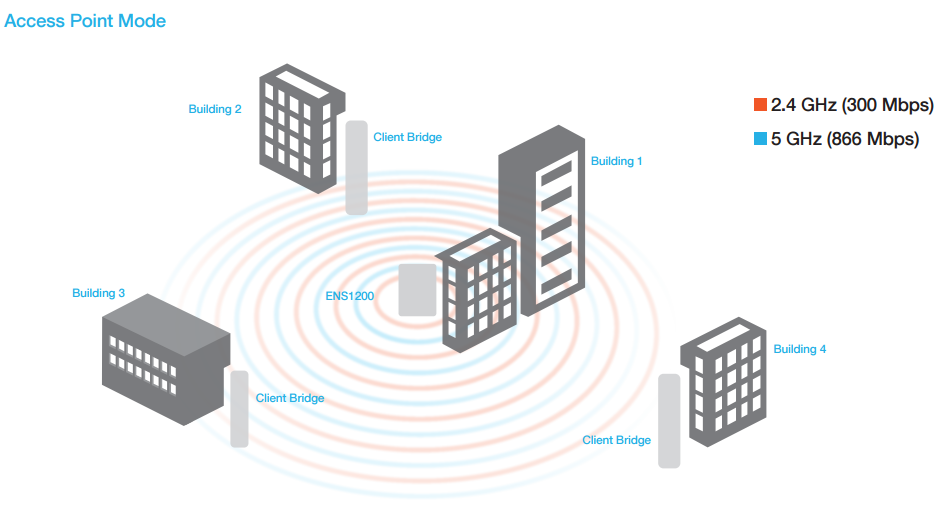

Access Point Mode

Specifications:

EnGenius ENS1200 Specifications

EnGenius ENS1200 Specifications
Standards IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity Memory: 128 MB
Flash Memory 16 MB
Antenna Internal Omni-Directional Antennas
5 dBi on 2.4 GHz & 5 GHz
Physical Interface 2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass Through
1 x Reset Button
1 x Power Connector

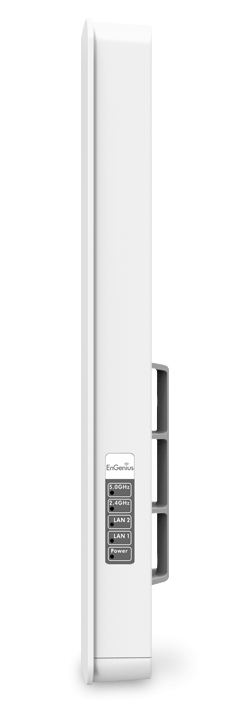

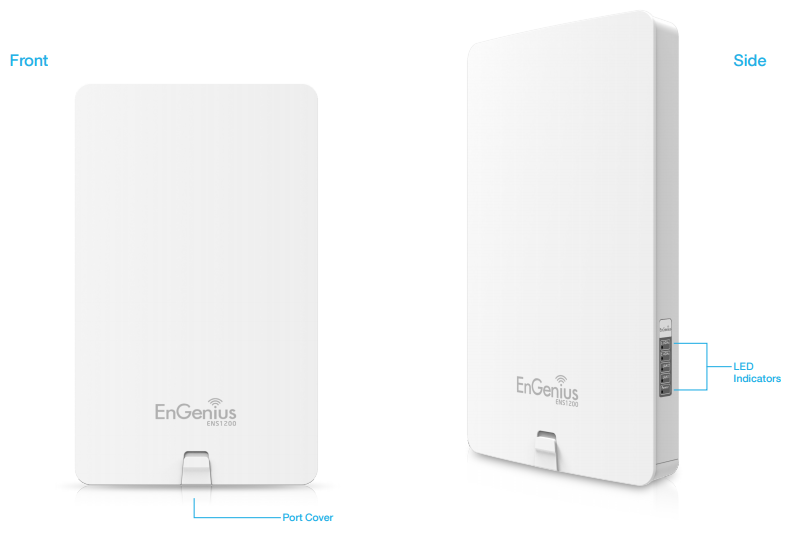

LED Indicators 1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
2 x LAN
Power Source External Power Adapter on PoE injector
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)
Ingress Protection Marking IP55-Rated Enclosure
Mounting Wall Mount
Pole Mount
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes Access Point
Frequency Radio 2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Transmit Power Up to 27 dBi on 2.4 GHz
Up to 26 dBi on 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams 2x2:2
Supported Data Rates (Mbps) 2.4 GHz: Max 300
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~3)
Supported Radio Technology 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization 802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
AP Radio Settings Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
RSSI Threshold
AP Client Limiting
VLANs for AP - Multiple SSIDs
Secured Guest Network
Email Alert
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
Management
Multiple BSSID Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
QoS Compliant with IEEE 802.11e Standard
WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Deployment Options Standalone (Individually Managed)
Configuration Web Interface (HTTP)
CLI (Telnet)
Control Features Auto Reboot
Firmware Upgrade
Security WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation
Environmental & Physical
Temperature Range Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C
Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
Device Weight: 1.89 lbs.
Width: 7.13" (181 mm)
Length: 11.97" (304 mm)
Height: 1.81" (46 mm)
Package Contents ENS1200 11ac Outdoor AP
48 V/0.8A Power Adapter
PoE Injector
Pole Mount Ring
Mounting Screw Set
Quick Installation Guide
Certifications FCC
CE
Warranty 1 Year

Compare:


Models: ENS1750 ENS1200 ENS500EXT ENS500 ENS202EXT ENS202
Wi-Fi Standard 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac 802.11 a/n 802.11 a/n 802.11 b/g/n 802.11 b/g/n
RAM 64MB 64MB 32MB 32MB 32MB 32MB
Flash 16MB 16MB 16MB 16MB 16MB 16MB
Frequency Band 2.4 GHz & 5GHz 2.4 GHz & 5GHz 5GHz 5GHz 2.4 GHz 2.4 GHz
Maximum Advertised Speed 2.4 GHz: 450Mbps
5 GHz: 1300Mbps
2.4 GHz: 300Mbps
5 GHz: 866Mbps
300Mbps 300Mbps 300Mbps 300Mbps
RF Power (dBm) 2.4 GHz: 29 dBm
2.4 GHz: 28 dBm
27 dBm 26 dBm 26 dBm 26 dBm 26 dBm
RF Power (mW) 800mW 500mW 400mW 400mW 400mW 400mW
Operation Modes Access Point
Client Bridge
WDS Bridge/AP/ Station
Access Point
Client Bridge
WDS Bridge/AP/ Station
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
LAN Interface 10/100/1000 x2 10/100/1000 x2 10/100 x2 10/100 x2 10/100 x2 10/100 x2
Antenna Built-in 5 dBi Directional Built-in 5 dBi Directional 2x External 5 dBi Omni Directional Built-in 10 dBi Directional 2x External 5 dBi Omni directional Built-in 8dBi Directional
Antenna Connector Type N/A N/A SMA N/A SMA N/A
Encryption WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2
PoE Power 48v 48v 24v 24v 24v 24v
IP Rating 65 65 65 65 65 65
Primary Application Point 2 multipoints Point 2 multipoints Point 2 multipoints Building 2 building Point 2 multipoints Building 2 building
Secondary Application 5GHz single radio bridge 5GHz single radio bridge 5GHz single radio bridge High speed mid-long range P2P network 2.4GHz N300 radio bridge High-speed CPE device
Specialty Application Highly interferred 2.4GHz wireless traffic Highly interferred 2.4GHz wireless traffic Highly interferred 2.4GHz wireless traffic Outdoor IP cam AP in congested 2.4GHz area Small base station replacement Outdoor video IP cam wireless client

Documentation:

Download the EnGenius ENS1200 Datasheet (PDF).
