EnGenius EPA5006GAT
802.3at/af Gigabit Power-over-Ethernet Adapter

EnGenius EPA5006GAT

EnGenius Networking Accessories
EnGenius EPA5006GAT

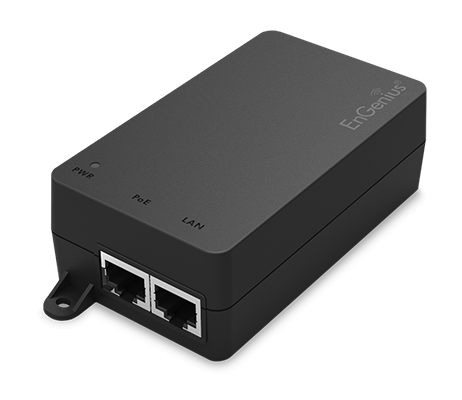

EnGenius EPA5006GAT 802.3at/af Complian Gigabit Power Over Ethernet (PoE) Injector with Power Supply
Data transmitted at 1000 Mbps and PoE Budget up to 30W of power per device.
#EPA5006GAT
Our Price: $49.00

More pricing below, click here!

Overview:

EnGenius EPA5006GAT 802.3at/af-compliant Gigabit Power-over-Ethernet Adapter supports high-speed data and up to 30 watts of power to compliant devices such as APs, IP cameras or VoIP Phones to 328-feet away over a single cable. Compact optimal port design provides easy, precise installation and built-in power surge protection preserves valuable equipment.

The EPA5006GAT PoE Adapter gives network administrators the flexibility to extend power to compatible network devices in locations where power outlets may not be readily available, such as on ceilings or in crawl spaces, while also connecting them to the company network. By combining high-speed Gigabit and power over the same CAT5/6 cable, the EPA5006GAT ensures maximum device performance.

Deliver Data & Power Over A Single Cable

Connect and extend power to 802.3at/af-compliant devices such as Access Points, IP Cameras and VoIP phones over a single CAT5/6 cable.

Deployment Flexibility

Extend power to deployment locations where electrical outlets are unavailable, up to 328 feet away such as on ceilings or in crawl spaces. Optimal port design provides easy positioning in difficult installations. Compact design encapsulates the power supply for easy placement.

Connect & Power at Gigabit Speeds

Combine high speed and power for maximum device performance.

Protect Valuable Equipment

With disconnect, short-circuit and surge protection, valuable networking equipment is guarded from power surges or short-circuits associated with lighting strikes and electrostatic discharges (ESD).

Mount to Walls or Ceilings

It includes mounting hardware for easy placement on walls, ceilings or in structured wiring enclosures.

Highlights

  • Ideal for connecting APs, IP Cameras, VoIP phones & more
  • Optimal port design for easy mounting/positioning
  • Compact design; sends up to 30W of output power
  • Extends power to unwired areas up to 328 ft./100 m
  • Gigabit Ethernet in & out ports for high-speed devices
  • Disconnect, short-circuit & surge protection ensures reliable, secure connection
  • Mounts to walls or ceilings with included hardware

Features:

Deliver Data & Power Over a Single Cable

The PoE Adapter includes two Gigabit Ethernet (10/100/1000 Mbps) ports; one port is used for connecting to an 802.3at/af-compliant Switch and the other for connecting to a PoE-enabled device. The Adapter can also serve to extend power between non-PoE Switches and network equipment by connecting one port to a standard Switch and the other to a PoE-enabled device up to 328-feet from the power source.

Extend Power to Access Points, IP Cameras, VoIP Phones and more

The EPA5006GAT Gigabit PoE Adapter supports high-speed data and up to 30-watts of power for compliant devices, such as Access Points, IP Cameras or VoIP phones over a single CAT5/6 cable for flexibility in deployment options.

Deployment Flexibility

The EnGenius EPA5006GAT Gigabit PoE Adapter gives network administrators the flexibility to extend power to compatible network devices in locations where power outlets may not be readily available, such as on ceilings or in crawl spaces, while also connecting them to the company network.

Compact, Optimal Port Design

Compact, optimal port design provides easy, precise installation in tight spots such as structured wiring enclosures, and built-in power surge protection for securing valuable network equipment.

Protects Valuable Equipment

With disconnect, short-circuit and surge protection, valuable equipment is guarded from power surges or short-circuits associated with lighting strikes and electrostatic discharge (ESD).

Specifications:


EnGenius EPA5006GAT Specifications
Standards 802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
802.3at/af Power-over-Ethernet
Compliance IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE
Physical Interface (1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
LED Indicator 1 x Power on Green
Mounting Wall (anchors & screws included)
Power Input Voltage
100 to 240VAC
Input Current 0.8A Max for 100VAC
AC Input Frequency 47-63Hz
Maximum Output Power 30W
Power Lines Pin4, 5:54V, Pin7, 8:Return
Added Protection Features Short-Circuit
Surge (over current/over voltage)
Environment & Physical
Temperature Operating: 32°F to 104°F (0°C to 40°C)
Storage:  -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing) Operating: 5 to 90% or less
Storage: 5 to 90% or less
Dimensions & Weights
EPA5006GAT Device (Without Mounting Kit) Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)
Packaging Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)
Master Carton Weight: 24 lbs. (10.93 kg)
Length: 20.4” (520 mm)
Width: 10.6” (270 mm)
Height: 12.2” (310 mm)
No. of boxes per Master carton: 40 Units
Package Contents EPA5006GAT
Power Cord
Warranty 1 year
Compatible EnGenius Products EAP1750H – Ceiling Mount Dual-Band Wireless AC1750 Access Point/Client Bridge
EAP1200H – Ceiling Mount Dual-Band Wireless AC1200 Access Point/Client Bridge
EAP900H – Ceiling Mount Dual-Band Wireless N900 Access Point/Client Bridge
EAP600 – Ceiling Mount Dual-Band N600 Indoor Access Point
EAP350 – Ceiling Mount Dual-Band N300 Indoor Access Point
EAP300 – Ceiling Mount Wireless N300 Indoor Access Point
ECB1750 – Dual-Band Wireless AC1750 Indoor Access Poing/Client Bridge
ECB1200 – 802.11ac 2x2 Dual-Band, High-Powered Wireless Access Point/Client Bridge
ECB600 – Dual-Band Wireless N600 Indoor Access Point/Client Bridge
ECB350 – Wireless N300 Indoor Access Point/Client Bridge with Gigabit
ENH1750EXT – Ruggedized 3x3 Dual-Band Wireless AC1750 Outdoor Access Point
ENH900EXT – Ruggedized 3x3 Dual-Band Wireless N900 Outdoor Access Point
ENH710EXT – Dual-Band Wireless N600 Outdoor Access Point
ENH220EXT – High-Capacity Wireless N300 Outdoor Access Point

Documentation:

Download the EnGenius EPA5006GAT Datasheet (PDF).
