EnGenius EPD-4824
Gigabit 802.3at/af PoE Converter

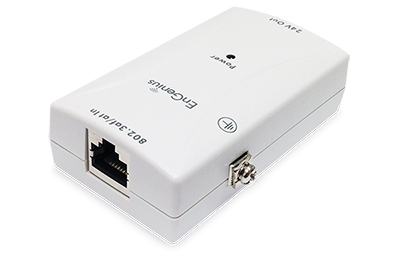

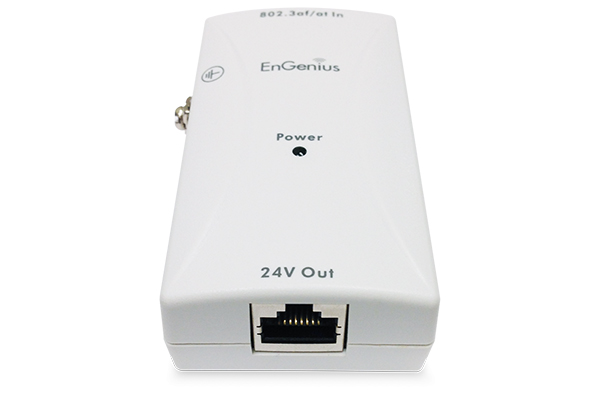

EnGenius EPD-4824 Product Image

EnGenius Outdoor Access Points / Bridges
EnGenius EPD-4824
EnGenius PoE Converter - 24 V DC Output
#EPD-4824
Our Price: $29.00

More pricing below, click here!

Overview:

EnGenius EPD-4824

The EPD-4824 is designed to work with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 Wireless Outdoor Access Points. With a power output of up to 24W, the EPD-4824 gives network administrators, IT managers, and installers the option to place PoE-client devices outdoors where power outlets may not be available and power Access Points while at the same time connecting them to the company’s network without the dangers of running extended power cabling. The EPD-4824G PoE Converter features two Gigabit Ethernet (10/100/1000 Mbps) ports; one port for connecting to an PoE Ethernet Switch and the other for connecting to a PoE-enabled device. The EPD-4824 converts its 48V 802.3af/at power source into 24V power output.

The Converter uses standard IEEE pin definition to power the device and comes with a 48V power supply. Pins 1, 2, and 3, 6 are used for data transmission while pins 4, 5, and 7, 8 are used for sending power to the device via center tap. The EPD-4824G PoE generates power over CAT6, Cat5, and Cat5e cabling of up to 300 feet. By sending out 48V, Ethernet terminals such as Wireless LAN Access Points can be powered remotely from an Ethernet Switch. These protective measures make the EPD-4824 an ideal outdoor wireless solution for compatible ENS and ENH Series Access Points in virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, indoor industrial environments, and businesses located in snowy, rainy, and arid climates.

Connect to a Variety of Power Sources

Converts its 48V 802.3af/at power source into 24V power output.

Faster File Transfers and Smoother Video Streaming

Utilizes Gigabit Ethernet standard speeds of up to 1000 Mbps for faster file transfers and video streaming.

Extend Range and Reach

Allows wireless devices to be mounted on the wall, ceiling, or where external power is not readily accessible with cabling up to 300 feet.

Compatible with Many EnGenius Outdoor Devices

Compatible with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 Wireless Outdoor Access Points.

Specifications:


EnGenius EPD-4824 Specifications
Technical Specifications
Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T
IEEE 1000Base-T
Protocol CSMA/CD
Ports 1x RJ45 Connector for Proprietary 48V Input
1x RJ45 Connector for 24V Output
Data Lines Pin1, Pin2
Power Lines Pin4, Pin5, Pin8
Diagnostic LEDs Power: Green
Power Output Provides up to 24W
Input: IEEE 802.3af/at
Output: DC 24V (802.3at Input = 24W, 802.3af Input 12.32W)
Reliability/MTTF 25000 Hours
Environment & Mechanical
Temperature Range Operating: 32°F to 122°F/0°C to 50°C
Storage: -4°F to 176°F/-20°C to 158°C
Humidity (Non-Condensing) 0% - 90%
Surge/ESD Protection Surge Protection 6 KV
Dimensions & Weights
EPD-4824 Device Weight: 0.15 lbs.
Length: 1.75” (44.45 mm)
Width: 3.25” (82.55 mm)
Height: 0.95” (24.13 mm)
Packaging Weight: 0.21 lbs.
Length: 5.20” (132.08 mm)
Width: 3.00” (76.20 mm)
Height: 1.25” (31.75 mm)
Master Carton Weight 23.36 lbs.
Width: 15.82” (402 mm)
Length: 12.67” (322 mm)
Height: 10.98” (279 mm)
Number of product boxes per master carton: 100 units
Package Contents EPD-4824 Gigabit PoE Converter
Quick Installation Guide
Suggested Products: ENS202 High-Powered, Long-Range 2.4 GHz Wireless N300 Outdoor Client Bridge
ENS202EXT High-Powered, Long-Range 2.4 GHz Wireless N300 Outdoor Access Point
ENS500 High-Powered, Long-Range 5 GHz Wireless N300 Outdoor Client Bridge
ENH500EXT High-Powered, Long-Range 5 GHz Wireless N300 Outdoor Access Point
ENH202 High-Powered, Long-Range Wireless N300 Outdoor Client Bridge
ENH500 High-Powered, Long Range 5 GHz Wireless N300 Outdoor Client Bridge
Warranty 1 Year
