EnGenius EWS1200-28TFP
24-Port Managed Gigabit 410W PoE+ Switch With WLAN Controller & Centralized Network Managemen


EnGenius Controllers & Switches

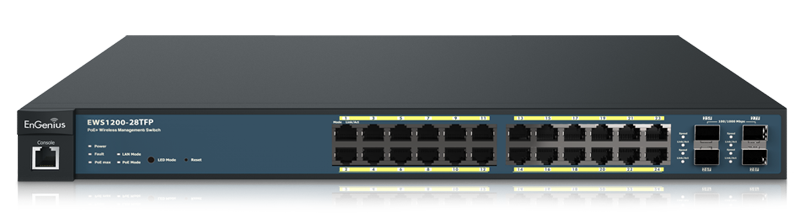

EnGenius EWS1200-28TFP
EnGenius EWS1200-28TFP Neutron Series 24-Port GigE 410W PoE+ WLAN Management Switch
#EWS1200-28TFP
Our Price: $525.00

More pricing below, click here!

Overview:

The EWS1200-28TFP features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Locally manage up to 50 Neutron EWS APs and centrally manage wired and wireless networks via ezMaster. Power compatible PoE+ devices such as IP cameras, VoIP phones, and APs.

Product Highlights

  • (24) 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports; (4) SFP Ports
  • 19” Rackmount Supports 802.3af/at PoE & Total Budget of 410W
  • 4 Types of In-Switch Network Management Options
  • Network Troubleshooting, Monitoring & Email Alerts

Full-Featured Layer 2 Switches with WLAN Controller Built-In

EnGenius’ Neutron Gigabit Managed PoE+ Switches are a powerful, full-feature platform capable of managing up to 50 Neutron Managed Access Points. Available in 8-, 24- and 48-port Power-over-Ethernet-capable models, Neutron PoE+ Switches offer enterprise-class features, simplified network configuration, monitoring and robust management options. Neutron Gigabit Managed PoE+ Switches provide future expandability for broader device connectivity and redundant management between Neutron APs and ezMaster Network Management Software with it SmartSync Redundancy feature. Doubling as a switch and a wireless network controller, Neutron Switches give IT administrators visibility into all Neutron connected devices. Group equipment with the same settings and policies and apply them automatically for streamlined management updates.

Features and Benefits:

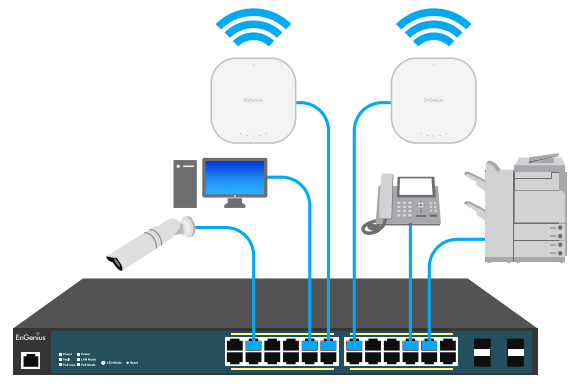

Power & Connect Mutliple Devices

Utilize the Neutron Gigabit Managed PoE+ Switch to optimize the installation and power management of network devices such as access points, IP cameras, and VoIP phones. Provide 802.3at/af PoE+ power and data on all ports and regulate power budgets according to device requirements.

Power & Connect Mutliple Devices

High Performance Gigabit & Management Flexibility

Each of Neutron Gigabit Managed PoE+ Switch's Gigabit Ethernet ports ensures seamless, high-speed access for networked devices while reducing bottlenecks that can interrupt critical communications. The Switch offers the deployment and management flexibility needed to support both wired and wireless networks efficiently.

Simplified Network Management & Visibility

Achieve network management, visibility and troubleshooting locally through the Switch's onboard Web interface tools or remotely with ezMaster software. Its Network Topology view automatically maps the deployment, displaying device relationships across the infrastructure, and is useful for troubleshooting issues without manual tracking.

Wireless Device Management

Quickly discover, configure, and monitor Neutron EWS Access Points and manage up to 50 devices within the local subnet through the Switch's built-in wireless network controller features.

Centrally Manage the Wired & Wireless Network

Remotely manage Neutron EWS Access Points, Switches, and IP Cameras through ezMaster Network Management Software. Centrally manage hundreds of EWS devices across the network regardless of its size or location without licensing or subscription fees.

VLAN/Voice & Quality of Service

Segment the network by departments or traffic types for increased performance and security with 802.1Q VLAN. Prioritize compliant VoIP and video traffic using 802.1p Class of Service (CoS) ensuring high bandwidth, and time-sensitive data is forwarded immediately for clear, smooth voice and video delivery across the network.

Secure Guest Networks

Establish secure Guest Network VLANs that blocks access to central computers and limits Internet resources for visitors. Safeguard the network from sophisticated Trojans and malware that can use guests' mobile devices to attack it.

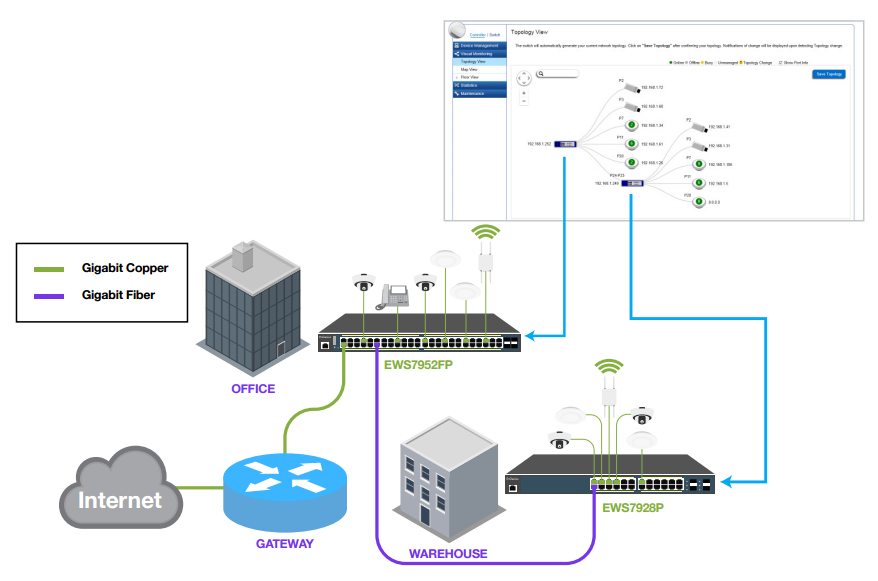

Deployment:

Deployment

Specifications:


EnGenius EWS1200-28TFP Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 24 10/100/1000 Mbps Ports
4 10/100/1000 Mbps SFP Ports
1 RJ45 Console Port
Performance Switching Capacity: 56 Gbps
Forwarding Mode: Store-and-Forward
SDRAM: 256 MB
Flash Memory: 32 MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses
PoE Capability PoE Standard: Ports 1~48 Support IEEE 802.3at/af
PoE Capable Ports: All Gigabit Ethernet Ports/Up to 30 W
PoE Budget 410 W
Power Source 100 ~ 240VAC, 50-60Hz
6.5A
Physical Interface
LED Indicators Reset Button
Desktop/Wall Mount
LED Indicators Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Environmental & Physical
Temperature Range Operating: 32 to 122° F/0 to 50° C
Storage: -40 to 158° F/-40 to 70 ° C
Humidity (Non-Condensing) 5% - 95%
Package Contents (1) EWS1200-28TFP GigE Managed PoE Switch
(1) Power Cord
(1) Rack Mount Kit
(1) Quick Installation Guide
Device Dimensions & Weights
Device Weight: 8.49 Ibs. (3.852 kg)
Width: 17.32” (440 mm)
Depth: 10.23” (260 mm)
Height: 1.73” (44 mm)
Warranty 1 Year
Software Features
Layer 2 Features
  • 802.3ad Link Aggregation
    - Maximum of 8 Groups/8 Ports per Group
  • Port Mirroring
    - One-to-One
    - Many-to-One
  • Spanning Tree Protocol
    - 802.1D Spanning Tree Protocol (STP)
    - 802.1w Rapid Spanning Tree Protocol (RSTP)
    - 802.1s Multiple Spanning Tree Protocol (MSTP)
  • MAC Address Table
    - 8K Entries
  • Static MAC Address
    - 256 Entries
  • 802.1ab Link Layer Discovery Protocol
  • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Supports 4094 IGMP Groups
    - IGMP per VLAN
    - IGMP Snooping Query
    - IGMP Snooping Fast Leave
  • MLD Snooping
    - MDL Snooping v1/v2
    - Supports 4,094 MLD Groups
    - IGMP per VLAN
  • Jumbo Frame
    - Up to 9,216 bytes
  • 802.3x Flow Control
  • 802.3az Energy Efficient Ethernet
  • VLAN
    - 802.1Q Support
  • VLAN Group
    - Max 4,094 Static VLAN Groups
  • Voice VLAN
QoS
  • 802.1p Quality of Service
    - 8 Queues per Port
  • Queue Handling
    - Strict
    - Weighted Round Robin (WRR)
  • QoS Based on:
    - 802.1p Priority
    - DSCP
  • Bandwidth Control
    - Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
  • Broadcast/Unknown Multicast/Unknown Unicast Storm Control
  • Access Control List (ACL) Layer 2/3
    - Supports Maximum 50 Entries (ACL)
    - Supports Maximum 256 Entries (ACE)
  • ACL Based on:
    - MAC Address
    - VLAN ID
    - 802.1p Priority
    - Ethertype
    - IP Address
    - Protocol Type
    - DSCP
Security
  • 802.1X
    - Guest VLAN
    - Port-Based Access Control
  • Supports RADIUS Authentication
  • Port Security
    - Up to 256 MAC Addresses per
  • Port Port Isolation
  • DoS Attack Prevention
  • BPDU Attack Prevention
  • Monitoring
    - Port Statistics
    - System Log
    - RMON
Management
  • Web Graphical User Interface (GUI)
  • Command Line Interface (CLI)
  • BootP/DHCP Client/DHCPv6 Client
  • SSH Server
  • Telnet Server
  • TFTP Client
  • HTTPS
  • SNMP
    - Supports v1/v2c/v3
    - SNMP Trap
    - SNTP
    - Configuration Restore/Backup
    - Dual Images
  • Diagnostic
    - Cable Diagnostic
    - Ping Test
    - Trace Route
  • MIB/RFC Standards
    - RFC1213
    - RFC1493
    - RFC1757
    - RFC2674
    - RFC 2863
Wireless Management Features
AP Supported (up to 50 APs in controller mode)
  • Access Point Auto Discovery & Provisioning
  • Access Point Auto IP-Assignment
  • Access Point Group Management
  • Remote Access Point Rebooting
  • Access Point Device Name Editing
  • Access Point Radio Settings
  • Band Steering
  • Traffic Shaping
  • RSSI Threshold
  • Fast Roaming
  • Access Point Client Limiting
  • Client Fingerprinting
  • Wireless Security (WPA/WPA2 Enterprise, WPA/WPA2 PSK)
  • AP VLAN Management
  • VLANs for Access Point- Multiple SSIDs
  • Secured Guest Network
  • Capture Portal
  • Access Point Status Monitoring
  • Rogue AP Detection
  • Email Alert
  • Wireless Client Monitoring
  • Background Scanning
  • Wireless Traffic & Usage Statistics
  • Real-Time Throughput Monitoring
  • Visual Topology View
  • Floor Plan View
  • Wireless Coverage Display
  • Map View
  • Secure Control Messaging
  • SSL Certificate
  • Local MAC Address Database
  • Remote MAC Address Database (RADIUS)
  • Unified Configuration Import / Export
  • Intelligent Diagnostics
  • Bulk Firmware Upgrade Capability
  • One-Click Update
  • Kick/Ban Clients

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

ezMaster Screenshots

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

  • Centralized Management
    • Configure, Managed & Monitor 1,000+ Neutron Devices
    • Cross-Network AP Management
    • AP Group Configuration
  • Access Point Configuration & Management
    • Auto Channel Selection
    • Auto Tx Power
    • Background Scanning
    • Band Steering (Auto Band Steering & Band Balancing)
    • Client Isolation
    • Client Limiting
    • Fast Roaming
    • L2 Isolation
    • LED On/Off Control
    • Multiple SSID
    • RSSI Threshold
    • Secure Guest Network
    • Traffic Shaping
    • VLAN Isolation
    • VLAN Tag
  • Comprehensive Monitoring
    • Device Status Monitoring
    • Floor Plan View
    • Map View
    • Rogue AP Detection
    • System Status Monitoring
    • Visual Topology View
    • Wireless Client Monitoring
    • Wireless Coverage View
    • Wireless Traffic & Usage Statistics
  • Management & Maintenance
    • Bulk Firmware Upgrade
    • Captive Portal
    • Email Alert
    • ezRedundancy
    • Kick/Ban Clients
    • One-Click Update
    • Remote Logging
  • Seamless Migration
  • SmartSync Redundancy
  • Syslog

System Requirements

Recommended environment for managing up to 500 APs

  • CPU: Intel Core i3 3.6 GHz dual-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

  • CPU: Intel Core i5 3.2 GHz quad-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

  • Internet Explorer 10 or better
  • Firefox 34.0 or better
  • Chrome 31.0 or better
  • Safari 8.0 or better

Network Topology Requirements

  • At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address
