EnGenius EWS660AP
3×3 Dual Band Wireless AC1750 Managed Outdoor Access Point

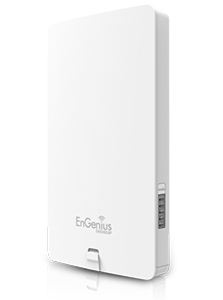

EnGenius EWS660AP Product Image

EnGenius Outdoor Access Points / Bridges
EnGenius EWS660AP
802.11ac Outdoor High-powered 29 dBm Ruggedized Wireless Managed AP
IP55-rated Waterproof Enclosure, 3x3:3 Dual-Band Concurrent, with Speeds Up to 1300 Mbps on 5 GHz and 450 Mbps on 2.4 GHz, Integrated Omni-directional Antennas, Accessory Kit, PoE (48V) Injector, Wall Mount Kit and Pole Mount Braket Included.
#EWS660AP
Our Price: $690.00

More pricing below, click here!

Overview:

The EWS660AP is a high-powered, long-range, 3x3 Dual Band Neutron Series Managed Wireless solution AC1750 802.11a/b/g/n/ac Outdoor Access Point that functions as a stand-alone Access Point or as part of an EnGenius Neutron Series Wireless Management solution. It features a high transmit RF power for better outdoor signal penetration.

The EWS660AP can operate as a stand-alone Access Point connecting to third-party PoE-capable switches but more control and versatile management of the Access Point is achievable when it is part of an EnGenius Neutron Series Wireless Network Management solution because the AP includes firmware that enables it to be immediately discovered, configured, monitored and managed from a compatible Neutron Series PoE+ Switch (EWS5912FP, EWS7928FP or EWS7952FP). This capability enables IT managers to deploy and manage up to 50 EWS660APs from a Neutron Series Switch allowing for simplified management from one browser-based interface including simultaneous firmware upgrades, clustering, traffic monitoring, bandwidth steering and many other features that can be reset or reconfigured from the convenience of the IT manager’s desktop.

Operating in both the 2.4 GHz and 5 GHz frequency spectrums and supporting 802.11a/b/g/n/ac standards the EWS660AP features wireless speeds up to 450 Mbps on its 2.4 GHz band and up to 1300 Mbps on its 5 GHz band, a Gigabit port for connecting to 802.3at-capable PoE Switches. As the EWS660AP is designed to be mounted in high locations where power outlets may be scarce, it also supports PoE (Power-over-Ethernet) IEEE 802.3at for use with an 802.3at-capable PoE injector or 802.3at-capable PoE Switches, drawing up to 23 watts of power.

To protect sensitive data during wireless transmissions, the EWS660AP offers different industry-standard encryption settings for wireless transmissions, including WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA Enterprise, WPA2 Enterprise, and WPA2 Mixed Enterprise. It also includes MAC address filtering to allow network administrators to offer network access only to verified computers and devices based on their MAC addresses.

The EWS660AP is easy to install in virtually any location and its internal electronics have been mounted in an IP65-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extremely harsh environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun. These protective measures make the EWS660AP an ideal outdoor wireless solution for virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, and businesses located in snowy, rainy, and arid climates.

Product Highlights

  • Dual-Band 11ac Speeds to 1,300 Mbps on 5 GHz; to 450 Mbps on 2.4 GHz
  • IP55-Rated Weatherproof Housing Withstands Harsh Environments
  • Enhanced Coverage: Up to 29 dBm Transmit Power Extends Outdoor Connectivity
  • PoE+ Primary Gig-Port & Secondary Pass-Through Gig-Port Provide Added Flexibility

Optimal Performance in Harsh Environments

EnGenius’ Neutron Series line of Managed Outdoor Access Points provides wireless connectivity that’s flexible, scalable and reliable for outdoor applications. Whether you are looking to provide ultra-fast Wi-Fi access to a resort pool, campus quad, or other outdoor property, Neutron EWS Access Points meet the high-bandwidth requirements of today’s mobile users. No matter what size network you need to support, Neutron EWS Access Points are flexible enough to meet your needs. Start small and grow or go big. Deploy and manage a few or 1,000+ APs on an unlimited number of networks distributed across various locations—regardless of their size and infrastructures. Neutron Series easily scales with your networking needs.

Features:

Ultra-Fast Wave 2 11ac Speeds

EnGenius’ 11ac Wave 2 Access Points deliver the highest available speeds for Wi-Fi devices reaching 2.5 Gbps. Beamforming technology focuses signals directly to client devices, providing optimal, reliable reception even in densely crowded outdoor environments. Four spatial streams and dual-concurrent MU-MIMO radio operation sends beams to multiple users simultaneously, creating increased network capacity and performance.

Peak Performance in Harsh Environments

Designed to perform in harsh conditions, Neutron EWS Outdoor Access Points feature industrial-grade IP68 to IP55-rated enclosures, ensuring the APs can withstand extreme outdoor climates and indoor industrial environments where the temperature is a factor. This includes prolonged outdoor exposure to sunlight, extreme cold, frost, snow, rain, hail, heat and humidity

Optimized Connectivity

Neutron EWS Outdoor APs feature dual-band concurrent wireless coverage, high speeds and high-device capacities. Band Steering optimizes network traffic flow by automatically directing dual-band clients to the less congested 5 GHz band. Fast Roaming capability ensures seamless, reliable connectivity for mobile users as they move between outdoor APs.

Maximized Wi-Fi Coverage

EWS Outdoor APs are designed for peak performance in a variety of outdoor environments providing high-performance reception and long-range connections. High-transmit power reaches to 29dBm, ensuring reliable, long-range device coverage.

Protected by Advanced Encryption

With Neutron EWS APs, your network is protected from attacks at multiple levels through advanced wireless encryption standards such as Wi-Fi Protected Access Encryption and authentication. Network threats are quickly detected and avoided through rogue AP detection, email alerts and real-time wireless invasion monitoring, allowing for immediate action to divert network hacks and other security threats.

Secure Guest Networks

Organizations that offer Internet access to patrons or visitors— notably hotels, retail shops and restaurants—will appreciate Neutron’s guest network capabilities. Establish a secure guest network that blocks access to main corporate computers. Create separate Virtual LANs for increased security, network reliability and bandwidth conservation.

Flexible Power-over-Ethernet Power Options

All Neutron EWS Outdoor Access Points feature at least one Gigabit PoE port, enabling placement in locations where power outlets are scarce or unavailable such as on poles or rooftop eaves. Power the APs through a connected Ethernet cable directly to a Neutron Managed Controller PoE+ Switch or with a PoE adapter up to 328 feet from the power source.

Simplified Deployment & Provisioning

In combination with Neutron Switches and ezMaster Network Management Software, Neutron EWS Outdoor APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, these access points are quickly and easily deployed and operated by users with limited networking experience.

Manage Up to 50 APs with Neutron Switches

Any Neutron Managed Switch can act as a wireless controller capable of managing up to 50 Neutron EWS Access Points. IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options.

Specifications:

EnGenius EWS660AP Specifications

EnGenius EWS660AP Specifications
Standards IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity Memory: 128 MB
Flash Memory 16 MB
Antenna Internal Omni-Directional Antennas
5 dBi on 2.4 GHz & 5 GHz
Physical Interface 2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass Through
1 x Reset Button
1 x Power Connector
Physical Security Kensington Security Slot
LED Indicators 1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
2 x LAN
Power Source External Power Adapter on PoE injector
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)
Ingress Protection Marking IP55-Rated Enclosure
Mounting Wall Mount
Pole Mount
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes Access Point
Frequency Radio 2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Transmit Power Up to 29 dBi on 2.4 GHz
Up to 27 dBi on 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams 3x3:3
Supported Data Rates (Mbps) 2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
Supported Radio Technology 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization 802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
QoS Compliant with IEEE 802.11e Standard
WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Deployment Options Standalone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)
Wireless Management Features (with ezMaster & Neutron Switch)
  • AP Auto Discovery and Provisioning
  • AP Auto IP Assignment
  • AP Group Management
  • Remote AP Rebooting
  • AP Device Name Editing
  • AP Radio Settings
  • Band Steering
  • Traffic Shaping
  • Fast Roaming (802.11k & 802.11r)
  • Pre-Authentication (802.11i, 802.11x)
  • PMK Caching (802.11i)
  • RSSI Threshold
  • AP Client Limiting
  • Client Fingerprinting
  • AP VLAN Management
  • VLANs for AP - Multiple SSIDs
  • Secured Guest Network
  • Captive Portal
  • Access Point Status Monitoring
  • Rogue AP Detection
  • Wireless Client Monitoring
  • Background Scanning
  • Auto Transmit Power
  • Auto Channel
  • Email Alert
  • Wireless Traffic & Usage Statistics
  • Real-time Throughput Monitoring
  • Visual Topology View
  • Floor Plan View
  • Map View
  • Wireless Coverage Display
  • SSL Certificate
  • Remote MAC Address Database (RADIUS)
  • Unified Configuration Import/Export
  • Bulk Firmware Upgrade Capability
  • One-Click Update
  • Intelligent Diagnostics
  • Kick/Ban Clients
  • Wi-Fi Scheduler
  • Traffic Shaping
Configuration Web Interface (HTTP)
CLI (Telnet)
Control Features Managed Mode (by Neutron Switch/ezMaster)
Auto Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web interface or CLI (FTP/HTTP)
Security WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation
Environmental & Physical
Temperature Range Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C
Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
Device Weight: 1.89 lbs.
Width: 7.13" (181 mm)
Length: 11.97" (304 mm)
Height: 1.81" (46 mm)
Package Contents EWS660AP 11ac Outdoor AP
48 V/0.8A Power Adapter
PoE Injector
Pole Mount Ring
Mounting Screw Set
Quick Installation Guide
Certifications FCC
CE
Warranty 1 Year

EnGenius Neutron Series Outdoor Managed Access Points Compare:


Model EWS871AP EWS870AP EWS860AP EWS660AP EWS650AP
Standards 802.11b/g/n/ac 802.11b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11b/g/n/ac
Frequency 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz
2.4 GHz Max. Data Rate 800 Mbps 800 Mbps 450 Mbps 450 Mbps 300 Mbps
5 GHz Max. Data Rate 1,733 Mbps 1,733 Mbps 1,300 Mbps 1,300 Mbps 867 Mbps
Radio Chains/Streams 4 x 4:4 4 x 4:4 3 x 3:3 3 x 3:3 2 x 2:2
RF Output Power 27 dBm 27 dBm 29 dBm 29 dBm 27 dBm
Ingress Protection Rating 67 67 68 55 55
Primary Ethernet Port 1 x Gig Port 1 x Gig Port 1 x Gig Port 1 x Gig Port 1 x Gig Port
Secondary Ethernet Port 1 x Gig Port
(PoE Output)
1 x Gig Port
(PoE Output)
1 x Gig Port
(PoE Output)
1 x Gig Port 1 x Gig Port
Console Interface 1 x RJ45 1 x RJ45 N/A N/A N/A
PoE Compliant 802.3at (PoE+) 802.3at (PoE+) 802.3at (PoE+) 802.3at (PoE+) 802.3at (PoE+)
Power Consumption (Peak) 21W (w/o PSE)
36W (w/PSE over LAN2)
21W (w/o PSE)
36W (w/PSE over LAN2)
32W 20W 20W
Integrated Antennas - 4 x 3 dBi (2.4 GHz)
4 x 3 dBi (5 GHz)
N/A 6 x 5 dBi 2 x 5 dBi
External Antenna (N-Type) 4 x 5 dBi (2.4 GHz)
4 x 7 dBi (5 GHz)
N/A 2.4 GHz: 3 x 5 dBi
5 GHz: 3 x 7 dBi
N/A N/A

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

ezMaster Screenshots

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

  • Centralized Management
    • Configure, Managed & Monitor 1,000+ Neutron Devices
    • Cross-Network AP Management
    • AP Group Configuration
  • Access Point Configuration & Management
    • Auto Channel Selection
    • Auto Tx Power
    • Background Scanning
    • Band Steering (Auto Band Steering & Band Balancing)
    • Client Isolation
    • Client Limiting
    • Fast Roaming
    • L2 Isolation
    • LED On/Off Control
    • Multiple SSID
    • RSSI Threshold
    • Secure Guest Network
    • Traffic Shaping
    • VLAN Isolation
    • VLAN Tag
  • Comprehensive Monitoring
    • Device Status Monitoring
    • Floor Plan View
    • Map View
    • Rogue AP Detection
    • System Status Monitoring
    • Visual Topology View
    • Wireless Client Monitoring
    • Wireless Coverage View
    • Wireless Traffic & Usage Statistics
  • Management & Maintenance
    • Bulk Firmware Upgrade
    • Captive Portal
    • Email Alert
    • ezRedundancy
    • Kick/Ban Clients
    • One-Click Update
    • Remote Logging
  • Seamless Migration
  • SmartSync Redundancy
  • Syslog

System Requirements

Recommended environment for managing up to 500 APs

  • CPU: Intel Core i3 3.6 GHz dual-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

  • CPU: Intel Core i5 3.2 GHz quad-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

  • Internet Explorer 10 or better
  • Firefox 34.0 or better
  • Chrome 31.0 or better
  • Safari 8.0 or better

Network Topology Requirements

  • At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address
