EnGenius FreeStyl 1
Extreme Range Scalable Cordless Phone System.

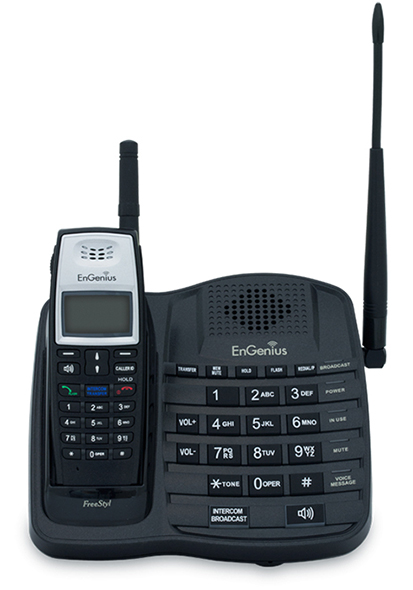

EnGenius FreeStyl 1 Product Image

EnGenius Phone Systems & Accessories
EnGenius FreeStyl 1
EnGenius FreeStyl 1 DECT 5.40 GHz Cordless Phone
#FREESTYL1
Our Price: $399.00

More pricing below, click here!

Overview:

EnGenius FreeStyl 1

The EnGenius FreeStyl 1 is a scalable 900 MHz Cordless Phone System with extreme wireless signal range that’s ideal for businesses with employees who roam beyond the confines of their offices or cubicles; or for expansive properties (farms, ranches, resorts, luxury estates) so owners or staff can stay connected over extended distances.

Going Where DECT and Wi-Fi Phones Cannot Go — The FreeStyl 1 in many cases is a complimentary addition to an existing digital desk phone systems, DECT phone systems and Wi-Fi phone systems. It can connect to both digital and analog PBX systems and provides companies or homeowners a solution that provides connectivity far beyond DECT or Wi-Fi phones particular on properties where outdoor Wi-Fi is unavailable or not an option.

A Scalable Solution — Individual FreeStyl 1 handsets are available for purchase from EnGenius authorized resellers so users can continue to add to their system. Each FreeStyl 1 base station supports up to 9 individual FreeStyl 1 handsets. Each handset includes its own charging station. Furthermore, it is not only use as a cordless phone system, the built-in speakerphone on both the base and handset units and a two-way radio for instant communication. The wireless intercom is private and secure and works as a two-way radio from either handset to handset or handset to base. The FreeStyl 1 is the perfect choice for users who do not require our rugged DuraFon, but prefer something with a little more style.

FreeStyl 1 system works well with:

  • Additional FreeStyl1 handsets
  • FreeStyl1 long optimal antenna assembly for handset
  • FreeStyl 1 handset pouch

Extreme Range Coverage

Up to 25,000 sq. ft. of facility coverage, up to 6 floors in-building penetration.

Outperforms 2.4 or 5.8GHz DECT solutions

High power/high sensitivity coverage penetrates concrete, wood and drywall.

Scalable system

Expandable to 9 total handsets in this one-line system.

Versatile

This multi-functional cordless system offers walkie talkie like, point-to-point communication that operates independent of the base station.

Business friendly feature

Simultaneous broadcast to multiple handsets from any handset. Plug directly to phone jack on the wall or plug directly to analog port of a PBX. Auto Attendant - call redirect assistance.

No Recurring Costs

No Subscriber contracts – (unlike cellular or 2-way radio licensing). No Monthly service charges or fees – (unlike cellular and phone companies).

Specifications:

EnGenius FreeStyl 1 Specifications
Electrical Specifications
Frequency 902-928 MHz
RF Power Peak - 27 dBm ; Average - 21 dBm
Channel Spacing 101 kHz
Number of Channels 252
Modulation Differently Encoded MSK
Multiple Access Frequency Hopping TDMA
Frequency Hopping Rate 100 per second
TDMA Frame Length 10 ms
Number of Slots/Frame 4
Antenna Connector Reverse TNC
Antenna Gain 2.5 dBi
Speech Coding 8 kbps G.729A
Transmission Data Rate 85.333 kbps
User Data Rate 64 kbps duplex
Duplex Time Division Duplex (TDD)
Voice Quality TIA/EIA-470B
No. of System ID 65,536
Battery Capacity AC/DC 100~240V/12V, 1A
Charger Current 550 mA
Charge Time 3 hours (from empty)
Environmental & Physical
Temperature Range Operating: 32 ~ 122ºF
Storage: -40 ~ 158ºF
Humidity Operating: 20 ~ 75%
Regulation Compliance FCC Part 15, Part 68
Package Contents FreeStyl 1 Base Station and Handset
5VDC/1A, AC100~240V Power Adapter x 2
Desktop charger
Quick Installation Guide
CD with User's Manual in pdf
Warranty 1 year
Actual range may vary depending on many factors including environmental conditions, building material, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice.

Compare:

EnGenius FreeStyl 1 & 2 Comparisons
Model FreeStyl 1 FreeStyl 2
Range
In Building Up to 6 floors Up to 6 floors
Warehouse Up to 25,000 sq. ft. Up to 25,000 sq. ft.
Open Area Up to 10 acres Up to 10 acres
Antenna
Base RT-TNC Dipole RT-TNC Dipole
Handset Low Profile Low Profile
Auto Attendant No No
Base Dialing/td> Yes No
Battery
mAH (milliAmp Hours) 1100 1100
Standby Time 60 hours 60 hours
Talk Time 5.5 hours 5.5 hours
Charge Time 3 hours 3 hours
Broadcast
Base Yes No
Handset Yes Yes
Caller ID Yes Yes
Compatible with FreeStyl 2 FreeStyl 1
Expandibility of Handsets Up to 9 Up to 9
Frequency 900 MHz 900 MHz
Frequency Hopping Yes Yes
Headset Jack 2.5mm 2.5mm
Intercom
Base Yes No
Handset Yes Yes
Phonebook entries Up to 50 Up to 50
Ports
Ports RJ-11 RJ-11
Lines 1 1
Tel 1 1
Voicemail No No
