EnGenius DuraFon Pro-PIB20L
Multi-Handset Bundle with External Antenna
EnGenius Products
EnGenius DuraFon Pro-PIB20L
More pricing below, click here!
Overview:
The DuraFon PRO-PIB20L is the perfect starter package for any business requiring workplace mobility and multiple handsets. This package includes (4) DuraFon handsets along with the DuraFon PRO (4) line base unit. In addition this kit also includes an extra battery and a DuraPouch for each handset for added protection. The DuraFon PRO-PIB20L also includes our SN-AK20L external antenna kit with 66' of low loss coax cable.
Product Highlights
- 12 floors in-building penetration
- 250,000 sq. ft. of facility coverage
- 3,000 acres of property, open land coverage
- Multi-Line (4-ports / line per base unit)
- Supports up to 90 DuraFon PRO or DuraWalkie handsets
- Works behind any analog port (PBX, VOIP, PSTN, FXS or POTS)
- Expandable to (8) bases for (32) line/ports
- Speakerphone
- Wireless full duplex intercom between DuraFon PRO & DuraWalkie handsets
- Broadcast Page half duplex (PTT) between DuraFon PRO & DuraWalkie handsets
- Rugged & durable designed handsets for industrial environments
- Auto Attendant
- Extended range options / Multi Location use
- Broadcast page port
- 6 hours talk time, 50 hours stand-by time
Also recommended
- Additional DuraFon PRO handsets
- Additional DuraWalkie handsets
- DuraFon PRO-BU 4 line expansion base
- DuraPouch-EX protective carrying case
- DuraFon-BA spare battery pack
- SN-ULTRA-AK20 External antenna

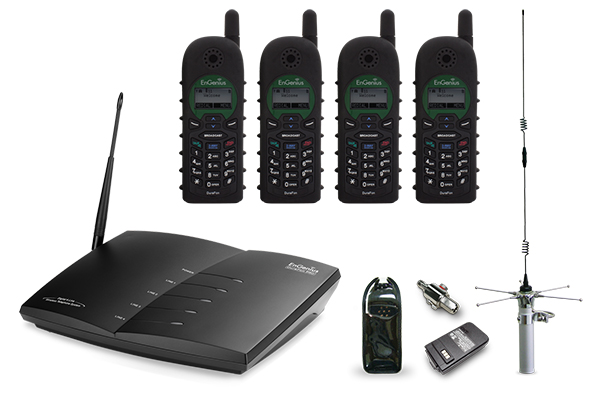

DuraFon PRO-PIB10L System Includes
- One (1) DuraFon PRO Base Unit
- Four (4) DuraFon PRO Handsets
- Eight (8) Li-Ion Battery Packs
- Four (4) AC Charging Cradles w/Power Adaptors
- Four (4) Belt Clips
- Four (4) Optimal Performance Antennas
- Four (4) Low Profile Antennas
- Four (4) DuraPouches – Handset Holsters
- One (1) External High Gain Antenna Kit w/66’ Low Loss Coax Cable
- One (1) Lighting Protection Kit
Specifications:
| EnGenius DuraFon Pro-PIB20L Specifications | ||
|---|---|---|
| Electrical Specifications | Base Unit | Portable Handset |
| Frequency | 902-928 MHz | 902-928 MHz |
| RF Power | Peak: 708 mW Average: 304 mW |
Peak: 708 mW Average: 76 mW |
| Channel Spacing | 200 kHz | 200 kHz |
| Number of Channels | 128 | 128 |
| Modulation | MSK | MSK |
| Multiple Access | Frequency Hopping TDMA | Frequency Hopping TDMA |
| Frequency Hopping Rate | 100 per second | 100 per second |
| TDMA Frame Length | 10 ms | 10 ms |
| Number of Slots/Frame | 8 | 8 |
| Number of Users/Carrier | 4 | 4 |
| Receiver Sensitivity | <-108 dBm (@BER 0.01) | <-108 dBm (@BER 0.01) |
| Antenna Connector | Reverse TNC | Non-Standard |
| Antenna Gain | 2 dBi5 dBi External (optional) | 2 dBi (Long)0.5 dBi (short) |
| TX Power Control Range | N/A | 100-708 mW |
| Telephone Interface | RJ11x4 | N/A |
| Speech Coding | 8 kbps G.729A | 8 kbps G.729A |
| Channel Coding | 8 kbps Convolutional + CRC | 8 kbps Convolutional + CRC |
| Transmission Data Rate | 170.678 kbps | 170.678 kbps |
| User Data Rate | 128 kbps duplex | 128 kbps duplex |
| Duplex | Time Division Duplex (TDD) | Time Division Duplex (TDD) |
| Voice Quality | TIA/EIA-470B | TIA/EIA-470B |
| No. of System ID | 65,536 | 65,536 |
| Ring Signal | 20-50 Hz, 12-90 Vrms | N/A |
| Auto-Attendant Coding | 8 kbps G.729 | 8 kbps G.729 |
| Flash Time | 100-900 ms programmable | N/A |
| Power Source | 120V/7V AC/DC Adapter | 3.6V, 1700mAh Li-ion Battery |
| Charger Current | N/A | 500 mA |
| Charge Time | N/A | 4 hours (from empty) |
| Regulation Compliance | FCC Part 15, Part 68 | FCC Part 15, Part 68 |
| Operating Temperature | -10~60C | -10~60C |
| Storage Temperature | -10~70C | -10~70C |
| Humidity | 20~75% | 20~75% |
| Dimension without antenna | 215Dx53Hx280W mm 11.0"x2.1"x8.5" | 58Wx31Dx161H mm |
| Weight | 32 ounces | 6.17 ounces |
