EnGenius EAP2200
Double the Network Device Capacity and Bandwidth Over Dual-Band APs

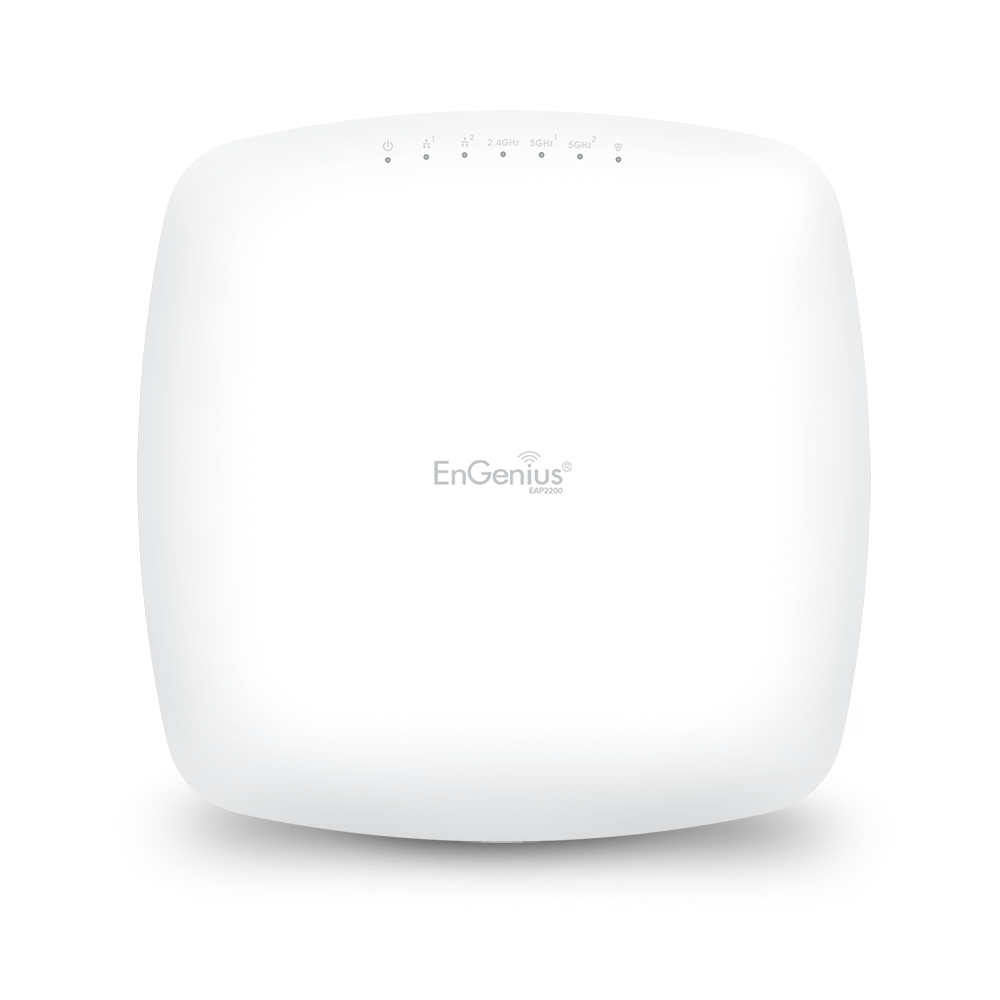

EnGenius EAP2200 Product Image

Sorry, this product is no longer available, please Contact Us for a replacement


Overview:

The EnTurbo EAP2200 Tri-Band AP’s powerful quad-core processors combine with 11ac and three (3) bands, turbocharging speeds to 2.2 Gbps and connection reliability for dense user environments, delivering high performing, next generation, business-class Wi-Fi at exceptional pricing. Tri-band technology doubles the available capacity and bandwidth of 5 GHz devices ensuring uncompromised multimedia streaming performance for more wireless users simultaneously.

  • 11ac Wave 2 Tri-Band AP Supports 2.4/5/5 GHz
  • Reach Over Air Speeds to 2.2 Gbps on 3 Bands; to 400 Mbps (2.4 GHz), to 867 Mbps (5 GHz), to 867 Mbps (5 GHz)
  • Quad-Core Processor, 717 MHz “Turbo Engine”
  • MU-MIMO & Beamforming Improve Connection Performance & Reliability
  • Combine Dual-GigE Ports, Maximize Wired Speed to 2 Gbps via Link Aggregation

Features & Benefits:

  • Quad-Core CPU, 717 MHz “Turbo Engine”
  • 802.11ac Wave 2 Tri-Band AP Supports 2.4/5/5 GHz
  • Reach Over Air Speeds to 2.2 Gbps on 3 Bands; 400 Mbps (2.4 GHz); 867 Mbps (5 GHz) +867 Mbps (5 GHz) (EAP2200)
  • 11ac Wave 2 Wireless Speeds to 867 Mbps (5 GHz); to 400 Mbps (2.4 GHz) (EAP2200/EAP2200EX/EAP1250)
  • Up to 30% Faster Throughput Over 11ac Wave 1 3x3 APs
  • Ceiling-Mount, Integrated or Detachable High-Gain Antennas
  • Compact, Sleek, Stylish Design (EAP1250)
  • MU-MIMO Improves Performance & Device Capacities
  • Beamforming Optimizes Antenna Signal, Reception & Reliability for Clients
  • Combine Tri-Band’s Dual-GigE Ports, Maximize Wired Speed to 2 Gbps via Link Aggregation
  • 802.3af PoE for Easy Placement Where Outlets are Scarce
  • Suite of Advanced AP Management & Security Features
  • Flexible Operation Modes: AP, WDS & Repeater
  • Simple Web-Based AP Monitoring & Management Software
  • Stand-Alone or Manage APs via EnGenius Switches or ezMaster™ Software
  • Mesh Wireless Support Simplifies Setup, Optimizes Signals & Automatic Self-Heals

System Requirements:

Recommended environment for managing up to 500 APs

CPU: Intel® Core™ i7 quad-core or above
RAM: 4 GB minimum
HDD: 500 GB (actual requirement dependent on log size)
OS: Microsoft® Windows® 7 or later + VMware® Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

CPU: Intel® Xeon® Processor E3 or above
RAM: 4 GB minimum
HDD: 500 GB (actual requirement dependent on log size)
OS: Microsoft® Windows® 7 or later + VMware® Player 7.0 or compatible virtualization software

Browser Requirements

Internet Explorer 10 or better
Firefox 34.0 or better
Chrome 31.0 or better
Safari 8.0 or better

Network Topology Requirements

At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address

About EnTurbo:

EnTurbo Indoor Access Points turbocharge wireless speed, coverage, and reliability. EnTurbo makes powerful, next generation Wave 2, usiness-class Wi-Fi affordably accessible for small to midsize businesses and large residences.

Turbocharged Performance

EnTurbo’s powerful onboard Qualcomm® 717 MHz quad-core processors turbocharge wireless performance and efficiency with up to 30 percent aster throughput compared to 802.11ac Wave 1 3x3 access points. Combined with new 802.11ac technology, EnTurbo APs maximize speed and erformance, support greater user device capacity and enhanced connection reliability.

New Tri-Band AP Technology

Uncompromised Audio & Video Streaming

Tri-band technology delivers double the available bandwidth ensuring stable multimedia streaming performance for more wireless users simultaneously by adding a second 5 GHz band.

Support the newest 802.11ac mobile gear while maintaining connectivity for all other Wi-Fi-capable devices and tomorrow’s growing IoT deployments.

Indoor Form & Function

Clean lines and low profile housing ensure the EnTurbo Indoor AP’s ceiling-mount design (EAP2200 & EAP2200) blends seamlessly into most deployment environments.

Maneuver EAP2200EXT’s four detachable antennas to ensure optimal signal alignment, increasing the effectiveness of your network deployment. emove the antennas and replace them with higher gain antennas to further amplify your wireless range.

EAP1250 boasts a clean white, minimalistic design that stylishly blends into any business or residential environment. Its small, round footprint and extremely low profile makes the EAP1250 easy to discretely place where needed.

Optimize Connectivity With Wireless Mesh

Utilize mesh access point mode for retrofit or new install applications where wire runs are not possible. Mesh’s smart sensing technology dds devices quickly, optimizes routes between APs, and automatically self-heals the network in the event an AP should ever lose connection.

Far-Reaching Wireless Blankets Coverage

Wide reaching, detachable 360-degree antennas minimize interference for blanketed coverage through floors, ceilings and walls to provide far-reaching reliable connectivity.

Reliable Connectivity & Network Protection

Configure multiple APs to ensure seamless, reliable connectivity for users as they move about the network with standards-based roaming. uickly detect and avoid network threats through a suite of advanced security features including Guest Networks and email alerts.

Automatic Band Selection

Efficiently steer dual-band client devices to the optimal, less congested frequency band. While the Tri-band AP also routes dedicated 2.4 nd 5 GHz devices directly to the respective bands ensuring the fastest bandwidth for all devices.

Flexible Power Options

Connect and power the EnTurbo Indoor APs via their Gigabit 802.3af Power-over-Ethernet ports for discrete placement in locations where power utlets are limited or unavailable, such as ceilings, hallways, rafters and attics. Place the APs up to 328 feet from a PoEcompliant switch or PoE adapter.

Documentation:

Download the EnGenius EAP2200 Datasheet (PDF).
