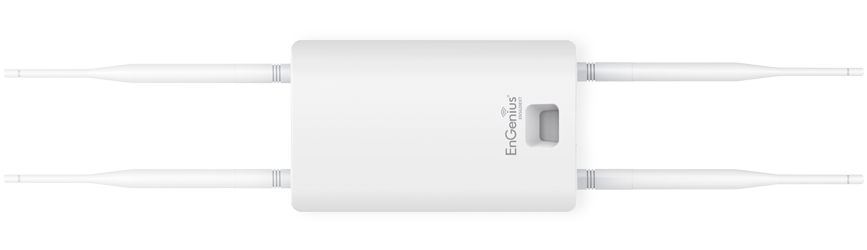

EnGenius ENS620EXT
11ac Wave 2 Outdoor Dual-Band Wireless Access Point

Features & Benefits:

Higher Speeds for Multi-User Support

The ENS620EXT offers the next generation of 11ac Wave 2 speed and performance for wireless access points by increasing speeds and capacities. Support the newest 11ac Wave 2 Multi-User MIMO (MU-MIMO) smartphones, laptops, and other mobile devices with AC1300 network speeds for bandwidth-heavy applications. Multi-MIMO sends multiple streams to several devices simultaneously expanding the total bandwidth and capacity of the network.

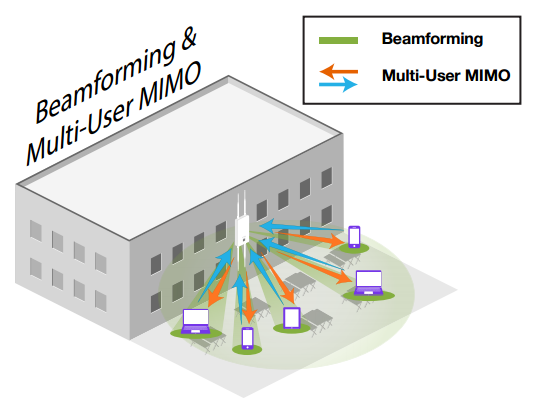

11ac Wave 2: Future Proof, Crowd Proof Networks

The ENS620EXT allows administrators to utilize the most advanced Wi-Fi technology standard available while supporting the future of mobile technology for their users. The AP handles crowded outdoor client environments through its two spatial, MU-MIMO streams and Beamforming technology, which targets signals directly to devices, providing optimal signal and reception reliability for users.

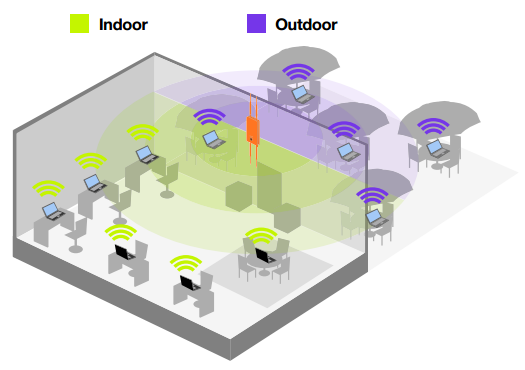

Powerful Connectivity Indoors and Out

The ENS620EXT is powerful enough to provide Wi-Fi connectivity approximately 3,000 square feet while its small footprint makes it flexible for both indoor and outdoor use. Place the AP near an exterior wall indoors and blanket both indoor and outdoor living areas with its wireless signal.

Exceptional Performance in Harsh Outdoor Climates

Designed for peak performance in harsh climates, the ENS620EXT features an IP55-rated weatherproof and dustproof enclosure ensuring it can withstand harsh outdoor and indoor environments where the temperature is a factor.

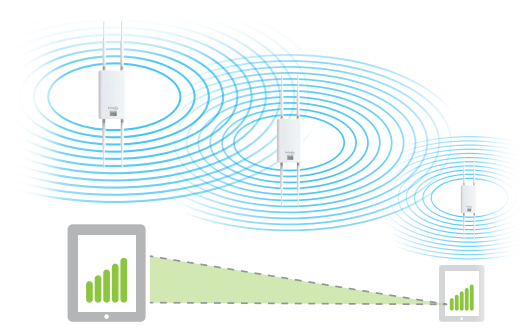

Fast Roaming & Secure Guest Network Features Improve the Customer Experience

Configure multiple APs for Fast Roaming (802.11r & 802.11k); ensuring client authentication occurs seamlessly before client devices move to the next AP, providing continuous connectivity for devices in motion with fast, secure roaming.

Establish Guest Networks to limit Internet resources for visitors while securing the network from sophisticated Trojans and malware that can use guest’s mobile devices to attack the network.

Specifications:

EnGenius ENS620EXT Specifications
Standards	IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at IEEE 802.1r IEEE 802.1k IEEE 802.11x
Memory Capacity	Memory: 256 MB Flash Memory 32 MB
Antenna	4 x 5dBi External Detachable SMA Omni-Directional Antennas

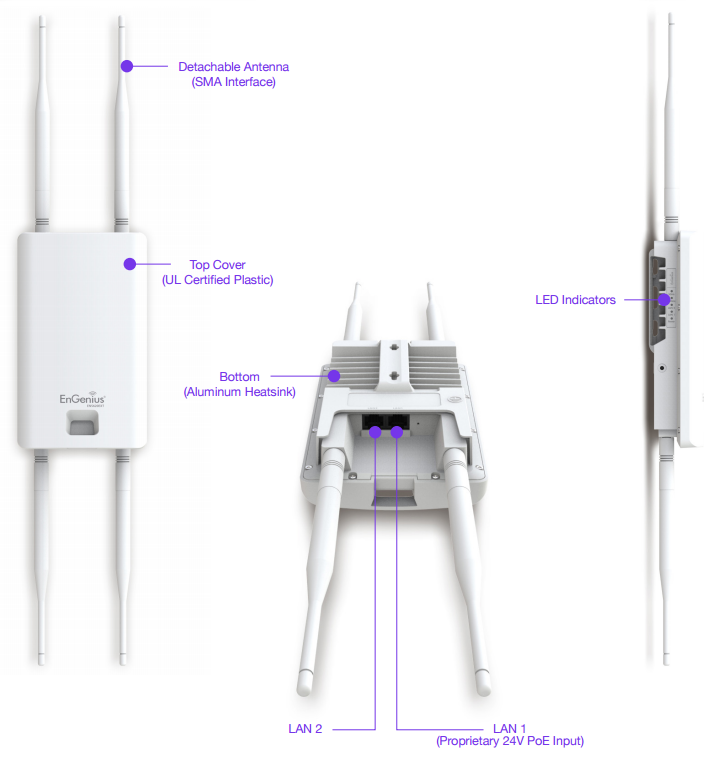

Physical Interface	2 x 10/100/1000 Gigabit Ethernet Ports - LAN1: Supports 802.3at PoE Input - LAN2: Data Pass Through 1 x Reset Button
LED Indicators	1 x Power WLAN (Wireless Connection) 2.4 GHz 5 GHz 2 x LAN
Power Source	PoE Injector (EPA2410GP) INPUT: 100-240VAC, 0.7A, 50-60Hz OUTPUT: 24V, 1A
Ingress Protection Marking	IP55-Rated Enclosure
Surge Protection	2KV
ESD Protection	Contact: 4KV Air: 8 KV
Mounting	Wall Mount Pole Mount
Wireless & Radio Specifications
Operating Frequency	Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes	Access Point Mode (AP mode) Client Bridge Mode (CB Mode) WDS: WDS AP, WDS Bridge, WDS Station
Frequency Radio	2.4GHz: 2400 MHz ~ 2835 MHz 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
Transmit Power	Up to 27 dBi on 2.4 GHz Up to 27 dBi on 5 GHz Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams	11AC Wave2 2x2:2
SU-MIMO	Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client
MU-MIMO	Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) wireless devices simultaneously
Supported Data Rates (Mbps)	2.4 GHz: Max 400 5 GHz: Max 867 802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 400 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~2)
Supported Radio Technology	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization	802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput (HT)—HT 20/40 MHz 802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM) 802.11n/ac packet aggregation: AMPDU, ASPDU
Supported Modulation	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
AP Radio Settings	Band Steering Traffic Shaping Fast Roaming (802.11k & 802.11r) RSSI Threshold AP Client Limiting VLANs for AP - Multiple SSIDs Secured Guest Network Email Alert Wi-Fi Scheduler Traffic Shaping Client Traffic Status PMK Caching Distance Control (ACK Timeout) Power Save Mode (U-APSD Support)
Management
Multiple BSSID	Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging	Supports 802.1q SSID-to-VLAN tagging Cross-band VLAN Pass Through Management VLAN
QoS	Compliant with IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	I/II, Private MIB
Deployment Options	Standalone (Individually Managed)
Configuration	Web Interface (HTTP) CLI (Telnet)
Control Features	Auto Reboot Firmware Upgrade
Security	WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering RADIUS Accounting (802.1x) Https Support SSH Support Client Isolation L2 Isolation
Environmental & Physical
Temperature Range	Operating: -4°F to 140°F, -20°C to 60°C Storage: -22°F to 176°F, -30°C to 80 °C
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Device Dimensions & Weights
Device	Weight: 1.11 lbs. (507 g) Width: 7.54” (191.6 mm) Length: 4.49” (114.3 mm) Height” 1.88” (47.7 mm)
Package Contents	ENS620EXT 11ac Wave 2 Outdoor AP PoE Injector (EPA2410GP) Pole Mount Ring Mounting Screw Set RJ-45 Ethernet Cable Quick Installation Guide 2 - 2.4GHz 5dBi SMA Antennas 2 - 5GHz 5dBi SMA Antennas
Certifications	FCC CE
Warranty	1 Year

Compare:

Models:	ENS1750	ENS1200	ENS500EXT	ENS500	ENS202EXT	ENS202
Wi-Fi Standard	802.11 a/b/g/n/ac	802.11 a/b/g/n/ac	802.11 a/n	802.11 a/n	802.11 b/g/n	802.11 b/g/n
RAM	64MB	64MB	32MB	32MB	32MB	32MB
Flash	16MB	16MB	16MB	16MB	16MB	16MB
Frequency Band	2.4 GHz & 5GHz	2.4 GHz & 5GHz	5GHz	5GHz	2.4 GHz	2.4 GHz
Maximum Advertised Speed	2.4 GHz: 450Mbps 5 GHz: 1300Mbps	2.4 GHz: 300Mbps 5 GHz: 866Mbps	300Mbps	300Mbps	300Mbps	300Mbps
RF Power (dBm)	2.4 GHz: 29 dBm 2.4 GHz: 28 dBm	27 dBm	26 dBm	26 dBm	26 dBm	26 dBm
RF Power (mW)	800mW	500mW	400mW	400mW	400mW	400mW
Operation Modes	Access Point Client Bridge WDS Bridge/AP/ Station	Access Point Client Bridge WDS Bridge/AP/ Station	Access Point Client Bridge WDS Bridge/AP/ Station Client Router	Access Point Client Bridge WDS Bridge/AP/ Station Client Router	Access Point Client Bridge WDS Bridge/AP/ Station Client Router	Access Point Client Bridge WDS Bridge/AP/ Station Client Router
LAN Interface	10/100/1000 x2	10/100/1000 x2	10/100 x2	10/100 x2	10/100 x2	10/100 x2
Antenna	Built-in 5 dBi Directional	Built-in 5 dBi Directional	2x External 5 dBi Omni Directional	Built-in 10 dBi Directional	2x External 5 dBi Omni directional	Built-in 8dBi Directional
Antenna Connector Type	N/A	N/A	SMA	N/A	SMA	N/A
Encryption	WEP/WPA/WPA2	WEP/WPA/WPA2	WEP/WPA/WPA2	WEP/WPA/WPA2	WEP/WPA/WPA2	WEP/WPA/WPA2
PoE Power	48v	48v	24v	24v	24v	24v
IP Rating	65	65	65	65	65	65
Primary Application	Point 2 multipoints	Point 2 multipoints	Point 2 multipoints	Building 2 building	Point 2 multipoints	Building 2 building
Secondary Application	5GHz single radio bridge	5GHz single radio bridge	5GHz single radio bridge	High speed mid-long range P2P network	2.4GHz N300 radio bridge	High-speed CPE device
Specialty Application	Highly interferred 2.4GHz wireless traffic	Highly interferred 2.4GHz wireless traffic	Highly interferred 2.4GHz wireless traffic	Outdoor IP cam AP in congested 2.4GHz area	Small base station replacement	Outdoor video IP cam wireless client

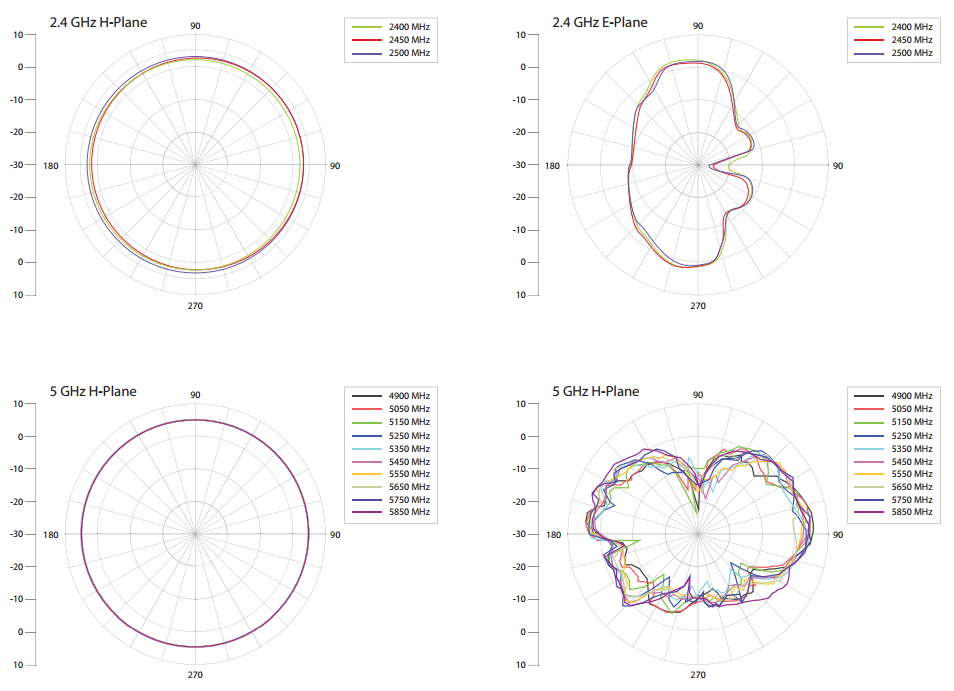

Antenna Radiation Patterns:

Documentation:

Download the EnGenius ENS620EXT Datasheet (PDF).
