EnGenius ESR530
AC1300 Dual-Band Whole-Home Smart Wi-Fi System

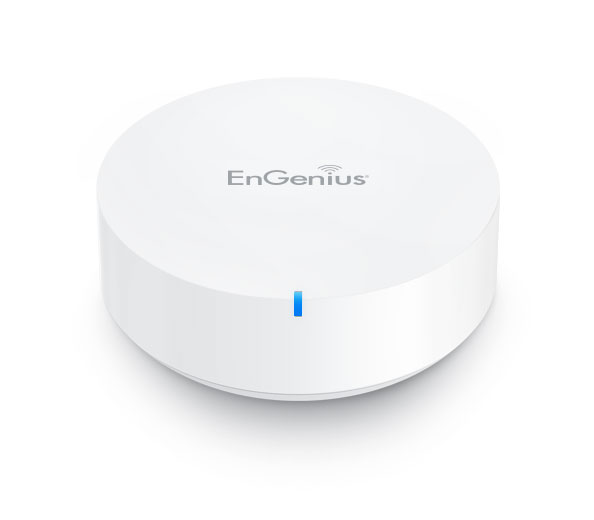

EnGenius ESR530 Product Image

Sorry, this product is no longer available, please Contact Us for a replacement


The EnGenius EnMesh ESR530 AC1300 Dual-Band Whole-Home Smart Wi-Fi System is a stylish, high-performance smart mesh router that offers fast, reliable wireless connectivity for all smart home devices, eliminating dead spots. Simplify Wi-Fi setup, control and manage via the EnMesh app and create personal cloud storage via the EnFile app via the external USB port.

  • Achieve Wall-to-Wall Wireless Coverage that Eliminates Dead Spots
  • Smart Mesh Technology Utilizes Smart Sensors to Automatically Optimize Connections
  • High Performing, 802.11ac Wave 2 Speeds Support Buffer-Free Video & Audio in Every Room
  • Simplified Mesh Wi-Fi: No Wires to Run & No Software to Setup
  • Quick, Step-by-Step Setup via EnMesh™ Mobile App
  • Full Network Insight, Control & Troubleshooting Features


Technical Specifications


IEEE 802.11b/g/n on 2.4 GHz

IEEE 802.11a/n/ac Wave 2 on 5 GHz


Integrated Omni-Directional Antennas

Physical Interface

2 x 10/100/1000 Mbps Ethernet Ports (1 WAN, 1 LAN)

1 x USB 2.0 Port

1 x DC Jack

1 x Reset Button

LED Indicators

1 x 3 Color-Status LED

- White: Mesh & Internet Connection Status

- Red: No Internet Connection or No Mesh Connection

- Orange: Mesh Connection Signal is Weak

Power Source

Power Adapter: 12V/1A

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Router Mode

Bridge Mode

Max. Nodes


Wireless Initial Setup

EnMesh App Required

Frequency Radio

2.4 GHz: 2400 MHz

5 GHz: 5150 MHz

Transmit Power

Up to 20 dBm on 2.4 GHz

Up to 19 dBm on 5 GHz

Radio Chains/Spatial Stream

2x2:2 MIMO

Max. Speeds

300 Mbps on 2.4 GHz

867 Mbps on 5 GHz

Supported Data Rates (Mbps):

2.4 GHz: Max 400

5 GHz: Max 867

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 36, 48, 54

802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)

802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11b: Direct-Sequence Spread Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)


802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz

802.11n Supports High Throughput (HT)—HT 20/40 MHz

802.11a/b/g Supports High Throughput (HT)—20 MHz

Supported Modulation

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM


Auto Channel Selection

Auto Transmit Power

Wireless STA (Client) Connected List

Guest Network

Fast Roaming (802.11k & 802.11r)

AirPrint® Server Support

Restore Factory Settings

Auto Reboot

Internet Speed Test

Mesh Connection Status

USB Features: SAMBA

UPnP Support

System Recovery

Manual/Auto Firmware Update

Band Steering

UID/DDNS Remote Control

Network Diagnostic < Auto Firmware Update

Parental Controls

Wi-Fi Access Scheduler

Website & Keyword Filter

- Social Media

- Search Engine

- Video Media

- Custom URL

QoS (Quality of Service)

Wireless Security




SSID Password

Network Services


Static IP


Mobile App

EnMesh (easy setup, monitoring and management)

EnFile (personal cloud storage and file management)

Available for iPhone® & Android™

Environmental & Physical

Temperature Range

Operating: 32 ºF~104 ºF (0 ºC~40 ºC)

Storage: -4 ºF~140 ºF (-20 ºC~60 ºC)

Humidity (non-condensing)

Operating: 90% or less

Storage: 95% or less

Device Dimensions & Weights

ESR530 Device

Weight: .43lbs lbs. (195g)

Width: 5” (127mm)

Length: 5” (127mm)

Height: 2.2” (57 mm)


Weight: .93 lbs. (420 g)

Width: 5.8" (33.8 mm)

Length: 5.8" (47.3 mm)

Height: 4.4" (18.8 mm)

Package Contents

1 x ESR530 Dual-Band AC1300 Mesh Router

1 x Power Adapter

1 x Quick Start Guide

1 x RJ-45 Ethernet Cable

1 – Screw Pack





1 Year
