EnGenius EWS850AP
Wi-Fi 6 2×2 Managed Outdoor Wireless Access Point

Features:

Next-Generation Wi-Fi

The EnSky Series Wi-Fi 6 outdoor access points take advantage of 11ax technology, which enables more efficient channel use, reduces latency between APs and client devices, and provides ground-breaking features such as uplink and downlink of OFDMA, 1024 QAM, BSS coloring, spatial reuse, uplink and downlink of MU-MIMO, Target Wake Time, and Longer OFDMA symbols.

• OFDMA (uplink and downlink) enables more efficient chan nel use, reduces latency between AP and client devices, and provides backward-compatibility with 2.4 GHz and 5 GHz.
• 1024 QAM boosts throughput by 25% and provides greater reliability in short distances.
• BSS coloring tags packets with a “color” to differentiate between adjacent basic service sets to potentially help mini mize co-channel interference (CCI).
• Spatial reuse identifies the different BSS “colors” and simultaneously transmits on the same channel, which reduc es wait times, lessens contention, and determines whether the transmission will be deferred or reused on the channel.
• MU-MIMO (uplink and downlink) supports up to eight client devices and provides greater network efficiency, focuses radio energy on specific users, and ensures optimal signal and reception.
• Target Wake Time (TWT) reduces power consumption, schedules wake times, and extends client battery life of mobile and IoT devices.
• Longer OFDM symbols enable shorter wait times between data transmissions and tolerate more noise, which allows greater coverage.

Greater Security

For enhanced wireless security, ESW850 access points support wireless encryption standards such as Wi-Fi Protected Access (WPA3/WPA2 Enterprise/PSK) encryption and IEEE 802.1X with RADIUS. MAC address filtering permits network administrators to allow or deny network access to client devices computers, tablet PCs, NAS, & smartphones according to their MAC addresses. Organizations that offer access to patrons or visitors—notably hotels, retail shops and restaurants—can establish a secure guest network that blocks access to main corporate computers. The ESW850 allows businesses to create separate virtual LANs for increased security, network reliability, and bandwidth conservation.

Rugged Durability in the Outdoors

Designed for peak performance in harsh climates, the EWS850AP features an IP67-rated waterproof and dustproof enclosure ensuring it can withstand harsh outdoor environments. This includes prolonged exposure outdoors to sunlight, extreme cold, frost, snow, rain, hail, heat, and humidity.

Reduced Power Consumption and Network Interference

The ESW850 features Target Wake Time (TWT) which reduces power consumption, schedules wake times, and extends the battery life of mobile and IoT devices. Its spatial reuse color set identification through BSS coloring simultaneously transmits on the same channel, reducing transmission wait time and contention.

Power-over-Ethernet Convenience

EnGenius EWS850AP Wi-Fi 6 (11ax) outdoor access points support 1 Gigabit PoE ports, enabling placement in discreet locations where power outlets are scarce or unavailable. Users can power the access points through a connected Ethernet cable directly to an EnSky Managed Gigabit PoE+ switch or with a PoE adapter up to 328 feet from the power source.

Simplified Deployment & Provisioning

In combination with EnSky managed switches, ezMaster and SkyKey network management software, EnSky Wi-Fi 6 APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, access points are quickly and easily deployed and operated by users with limited networking experience. The EnSky solution enables users to manage up to 50 APs per EnSky managed switch and 100 devices per SkyKey controller and ezMaster software to control 1,000+ APs and switches.

Flexibility and Compatibility

In addition, while the ESW850 features the latest in 802.11ax technology, it remains backward compatible with all 11ac/a/b/g/n legacy devices. The ESW850’s compliance with 802.3at input ensures flexible installation over 100 meters (328 feet).

The network can extend over short or long distances with robust 25dBm output power coupled with four (4) detachable, SMA-type, omni-directional, 5 dBi MU-MIMO antennas that deliver network connectivity 360° to stadiums, resort properties and large outdoor areas.

Specifications:

EnGenius EWS850AP Specifications
Standards	IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac
Processor	Qualcomm Quad-Core CPU ARM Cortex A53s @ 1.8GHz
Antenna	External Omni-Directional Antenna EWS850AP (SMA Type) 2 x 2.4 GHz: 5 dBi 2 x 5 GHz: 5 dBi Detachable External Omni-Directional Antenna
Physical Interface	1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port 1 x Reset Button (on the PoE Injector EPA5006GR)
LED Indicators	1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz
Power Source	Power-over-Ethernet: 802.3at Input Proprietary 48V-54V
Maximum Power Consumption	15.9 W
Wireless & Radio Specifications Operating Frequency	Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes	Managed mode: Access Point, Mesh Stand Alone Mode: Access Point, Mesh, WDSs
Wireless & Radio Specifications
Frequency Radio	2.4 GHz: 2400 MHz ~ 2482 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power	Up to 23 dBm on 2.4 GHz Up to 25 dBm on 5 GHz
Tx Beamforming (TxBF)	Yes
Radio Chains/Spatial Stream	2x2:2
SU-MIMO	Two(2) spatial streams SU-MIMO for 2.4GHz and two(2) spatial streams SU-MIMO for 5GHz up to totally 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4GHz and 5GHz radio.
MU-MIMO	Two(2) spatial streams multi-user (MU)-MIMO for up to 1201 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Two(2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously
Supported Data Rates (Mbps)	802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) and 5 GHz: 18 to 1201 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technology	802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization	802.11ax supports high efficiency (HE) —HE20/HE40/HE80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation	2.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK
Management
Multiple BSSID	8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging	Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN VLAN Per SSID
Spanning Tree	Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)	Complaint With IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	MIB I/II, Private MIB
Management Features Deployment Options	Stand-Alone (Individually Managed) Managed Mode (with EnSky Series Switch/ezMaster)
Stand-Alone Management Features	Auto Channel Selection Auto Transmit Power Wireless STA (Client) Connected List Auto Channel Selection Captive Portal Per SSID Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) Band Steering per SSID Traffic Shaping per SSID/per user VLAN Per SSID Backup/Restore Settings Auto Reboot E-Mail Alert Site Survey Save Configuration as Users’ Default RSSI Threshold
Wireless Management Features (With ezMaster & EnSky Switch)	AP Auto Discovery and Provisioning AP Auto IP Assignment AP Group Management Auto AP Rebooting AP Device Name Editin Band Steering Per SSID Traffic Shaping Per SSID and Per User Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) AP Client Limiting Client Fingerprinting AP VLAN Management VLAN Per SSID Captive Portal Per SSID Multi-Tenant Account AP Traffic Log Access Point Status Monitoring Wireless Client Monitoring Email Alert Wireless Traffic & Usage Statistics Real-Time Throughput Monitoring Visual Topology View Floor Plan View Map View Wireless Coverage Display Secure Control Messaging (SSL Certificate) Local MAC Address Database Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler Schedule reboot Hotspot 2.0
Wireless Security	WPA3 WPA2 Enterprise (AES) Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation
Environmental & Physical
Environment Protection Level	IP67
Surge Protection	1KV
EDS Protection	Contact = 4KV Air = 8KV
Environment & Physical Temperature Range	Operating: -4F to 140F (-20C to 60C) Storage: -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Device Dimensions & Weights
Device	Weight: 1.54 lbs. (0.7 kg) Width: 4.07” (124 mm) Length: 7.48” (190 mm) Height” 2.07” (52.5 mm)
Packaging	Weight: 3.96 lbs. (1.8kg) Width: 9.21" (234 mm) Length: 11.18" (284 mm) Height: 5.67" (144 mm)
Package Contents	EWS850AP Dual-Band AX1800 Outdoor Access Point 1 – EWS850AP Dual-Band AX1800 Outdoor Access Point 1 - PoE Adapter (EPA5006GR) 1 - Pole-Mounting Brackets 1 - Wall-Mount Screw Set 2 - 2.4GHz 5dBi SMA Antennas 2 - 5GHz 5dBi SMA Antennas 1 - Power Cord 1 - Quick Installation Guide
Certifications	FCC, CE, CB, IC
Warranty	1 Year

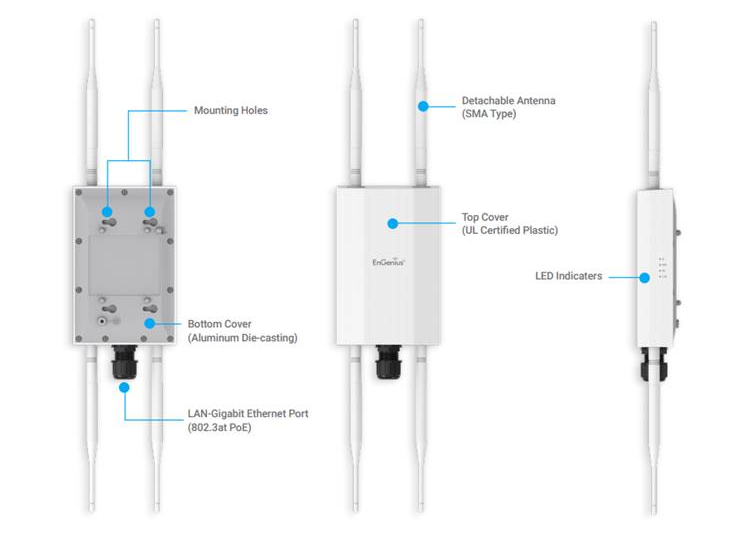

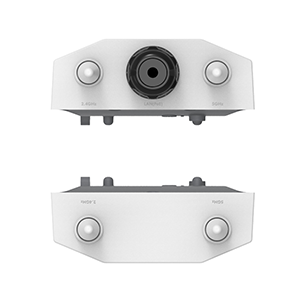

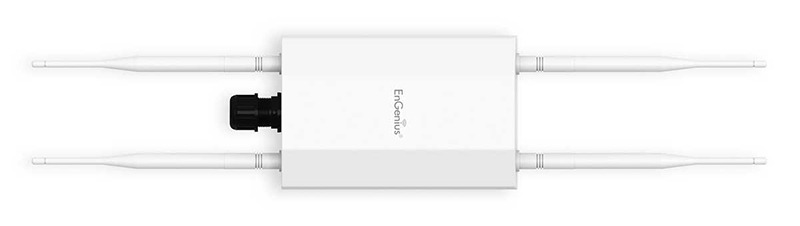

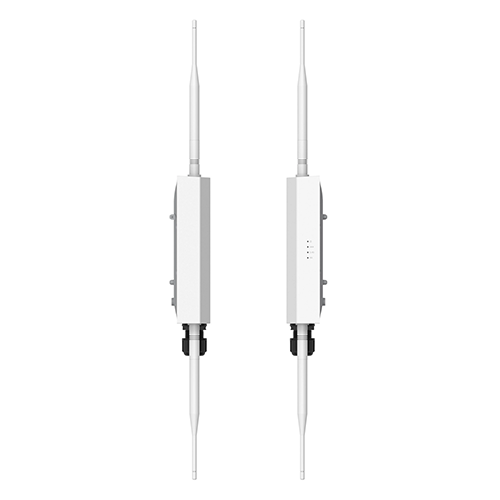

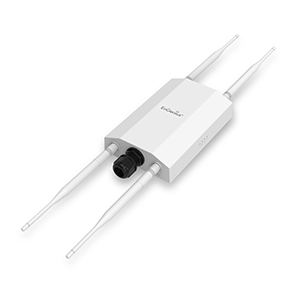

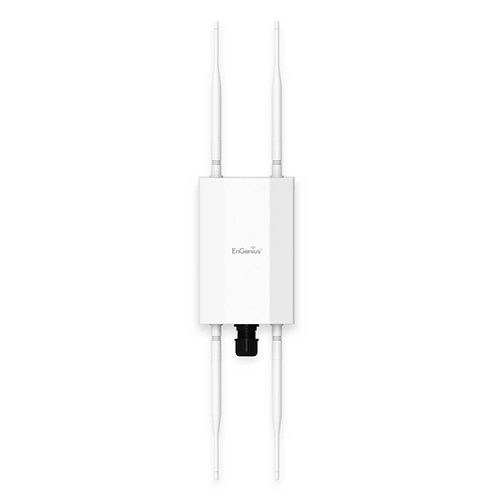

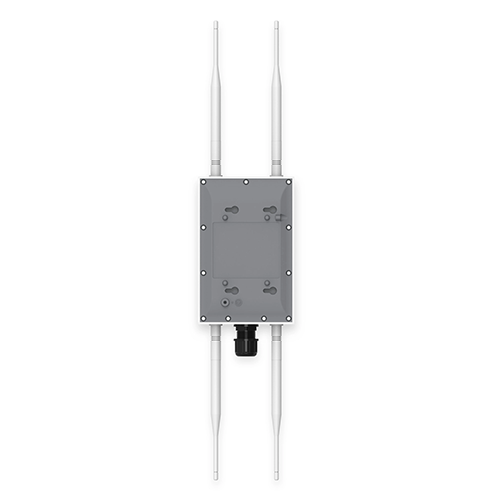

Views:

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

• Centralized Management
  • Configure, Managed & Monitor 1,000+ Neutron Devices
  • Cross-Network AP Management
  • AP Group Configuration
• Access Point Configuration & Management
  • Auto Channel Selection
  • Auto Tx Power
  • Background Scanning
  • Band Steering (Auto Band Steering & Band Balancing)
  • Client Isolation
  • Client Limiting
  • Fast Roaming
  • L2 Isolation
  • LED On/Off Control
  • Multiple SSID
  • RSSI Threshold
  • Secure Guest Network
  • Traffic Shaping
  • VLAN Isolation
  • VLAN Tag
• Comprehensive Monitoring
  • Device Status Monitoring
  • Floor Plan View
  • Map View
  • Rogue AP Detection
  • System Status Monitoring
  • Visual Topology View
  • Wireless Client Monitoring
  • Wireless Coverage View
  • Wireless Traffic & Usage Statistics
• Management & Maintenance
  • Bulk Firmware Upgrade
  • Captive Portal
  • Email Alert
  • ezRedundancy
  • Kick/Ban Clients
  • One-Click Update
  • Remote Logging
• Seamless Migration
• SmartSync Redundancy
• Syslog

System Requirements

Recommended environment for managing up to 500 APs

• CPU: Intel Core i3 3.6 GHz dual-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

• CPU: Intel Core i5 3.2 GHz quad-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

• Internet Explorer 10 or better
• Firefox 34.0 or better
• Chrome 31.0 or better
• Safari 8.0 or better

Network Topology Requirements

• At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address

Documentation:

Download the EnGenius EnSky Series Wi-Fi 6 Outdoor Dual Band Wireless Access Points Datasheet (PDF).
